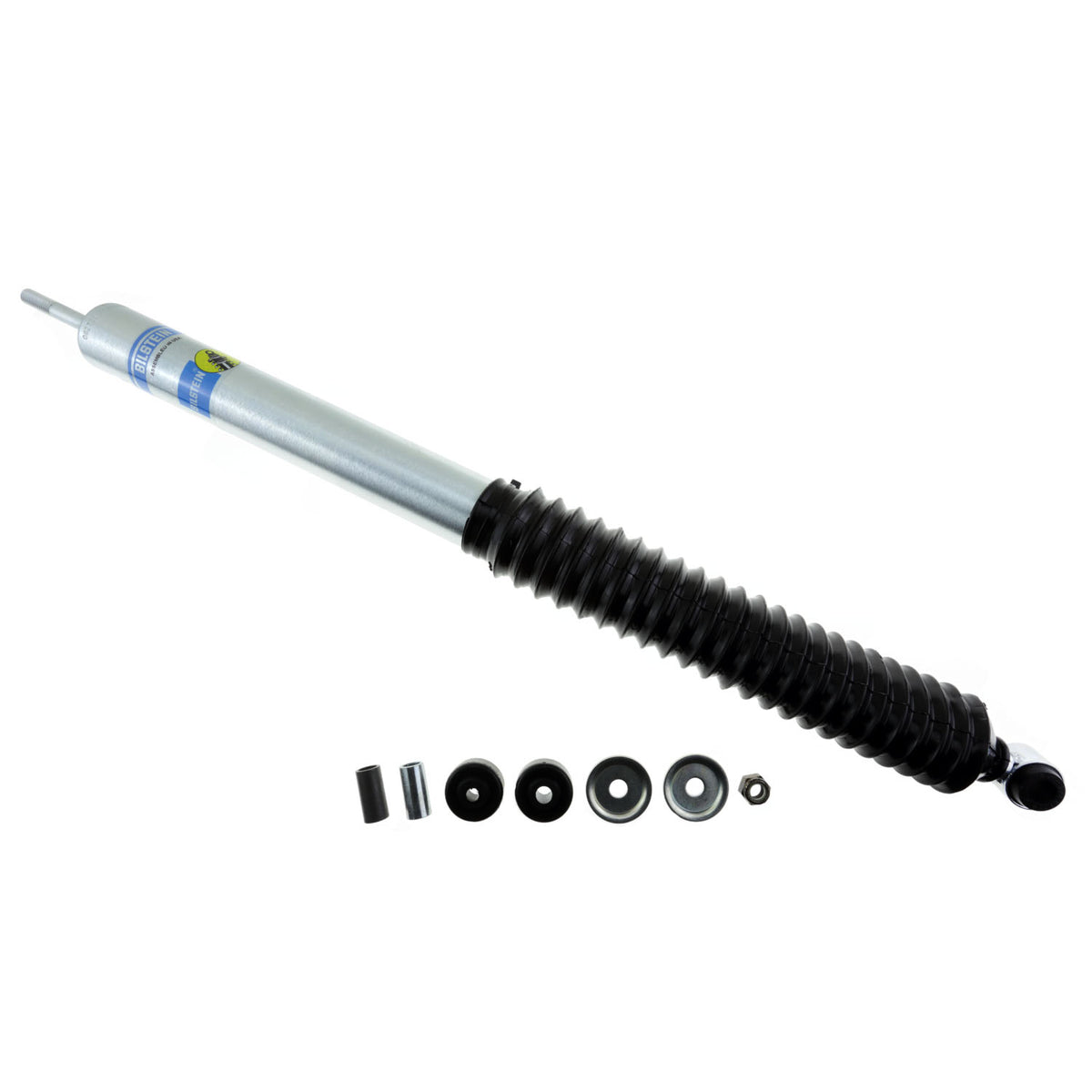

Suspension Shock Absorber Eye 5/8in/Stem Zinc Plated Monotube Non-Adjustable Smooth Body (Non-Coilover) Collapsed Length 17.11 B8 5125 Bilstein

Bilstein B8 5125 shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment.

These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments.

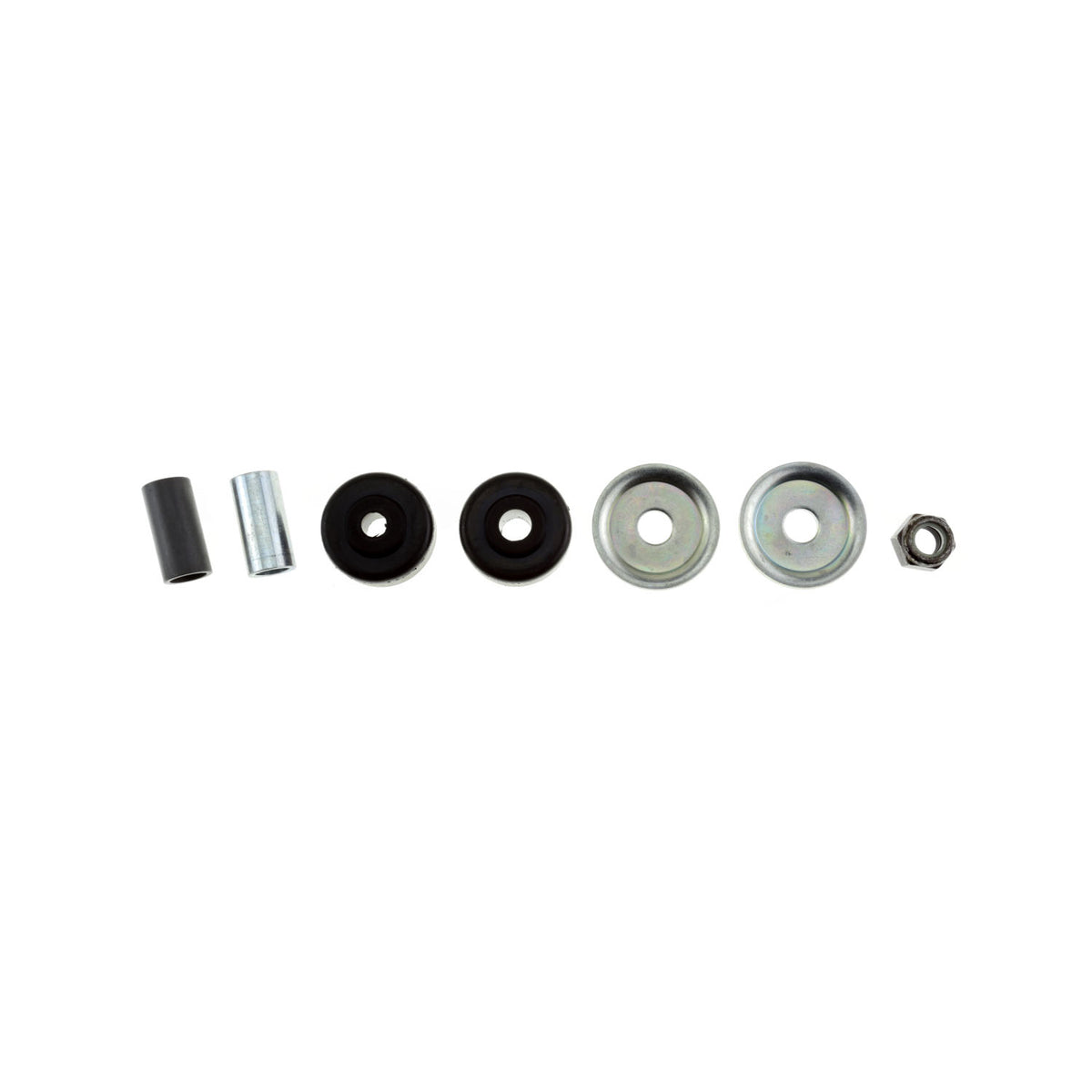

All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration. The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving.

Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders.

Details:

• Series: B8 5125
• Internal Design:Monotube
• Lower Mount Type: Eye 5/8in
• Upper Mount Type: Stem
• Finish: Zinc Plated
• Adjustable: Non-Adjustable
• Body Design: Smooth Body (Non-Coilover)
• Collapsed Length Inch: 17.11
• Compression at 52m s: 755
• Extended Length Inch: 28.36
• Boot Included:Black Bellows
• Mount Type: Stem-to-Eye
• Pistion Diameter: 46mm
• Rebound at 52m/s: 3775
• Reservior: No
• Shaft Diameter: 14mm
• Stroke Travel Length In: 11.25
• Stroke Travel Length In: 285.8
• Warranty: Limited 90 Day Warranty
