The ReadyLift 1.5 Inch Leveling Kit for Ford Ranger 4WD 2024 is a premium CNC machined billet aluminum front leveling solution for Ranger owners who want to remove the factory rake, create a cleaner and more aggressive front stance, and open up fitment options for larger tires without cutting, welding, or making permanent changes to the factory truck. Part number 66-24200: this kit delivers 1.5 inches of front lift using precision-machined billet aluminum spacers that preserve factory ride quality and handling feel throughout the installation. At IMM Hawaii Parts, we carry this kit for Ranger 4WD owners who want a properly built leveling solution that installs cleanly and performs consistently on the newest generation Ranger platform.
ReadyLift 1.5 Inch Leveling Kit for Ford Ranger 4WD CNC Machined Billet Aluminum Spacers

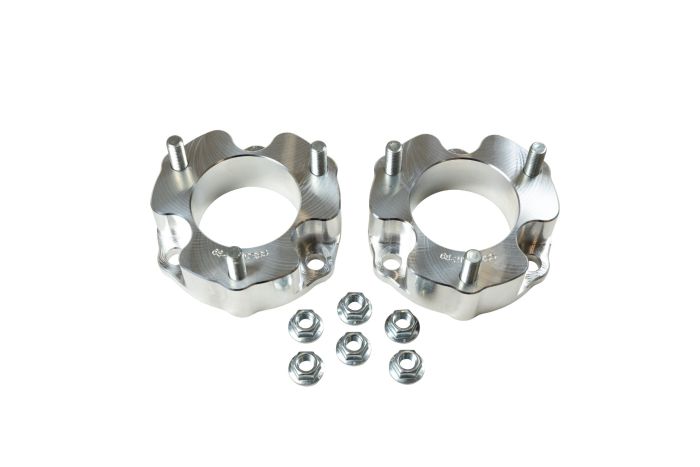

The billet aluminum spacers at the core of this leveling kit are CNC machined to precise tolerances for a secure and properly aligned fit on the 2024 and newer Ranger 4WD front suspension. CNC machining produces tighter tolerances and a stronger finished part than cast alternatives, giving the spacers the structural precision needed to maintain correct front end geometry and strut alignment after the 1.5-inch lift is installed. Billet aluminum construction keeps the spacers lightweight while providing the rigidity needed to hold the leveled height consistently through regular daily driving, highway use, and the off-road use the Ranger is built for. Customers at IMM Hawaii Parts appreciate the quality of construction in this kit compared to basic cast spacer alternatives on the market.
Bolt-On Installation That Preserves Factory Ride Quality
This leveling kit installs using a bolt-on process with basic hand tools, though a spring compressor is required for the installation. No cutting of factory components and no permanent modifications to the Ranger structure are involved at any stage of the installation, keeping the factory suspension setup fully intact and the installation reversible. The billet aluminum spacers work with the existing factory struts rather than replacing them, which preserves the factory damping tune and spring rate that makes the newest generation Ranger ride as well as it does. At IMM Hawaii Parts, we recommend professional installation to ensure the spring compressor is used safely and the front end is properly aligned after the lift is complete.
Tire and Wheel Fitment Options
This leveling kit opens up a meaningful range of larger tire options for the 2024 and newer Ranger 4WD. For a direct no-trim fit, tires up to 275/70R17 on a 17x8.5 wheel with a plus-25 offset fit cleanly without any rubbing. For owners who want to push into a larger size, 285/70R17 tires are possible with minor trimming. If you are running stock wheels, clearance is limited to 265-width tires due to the proximity of the front coil spring. Always confirm your specific wheel and tire combination before finalizing your setup, and contact IMM Hawaii Parts for personalized wheel and tire recommendations for your Ranger build.
Not Compatible With All Ranger Configurations
This leveling kit is designed for the 2024 and newer Ford Ranger 4WD only and is not compatible with 2WD, Tremor, or Raptor edition Ranger models. Always confirm your specific Ranger trim and drivetrain configuration before ordering to ensure proper fitment.
Product Details
|
Specification
|
Details
|
|
Compatible Vehicle
|
2024 and Newer Ford Ranger 4WD
|
|
Part Number
|
ReadyLift 66-24200
|
|
Brand
|
ReadyLift
|
|
Lift Height
|
1.5 inches Front
|
|
Spacer Material
|
CNC Machined Billet Aluminum
|
|
Install Type
|
Bolt On, Spring Compressor Required
|
|
Factory Ride Quality
|
Preserved
|
|
No Trim Tire Fitment
|
Up to 275/70R17 on 17x8.5 plus 25 offset
|
|
Max Tire With Trimming
|
Up to 285/70R17
|
|
Stock Wheel Limit
|
265 Width Tires
|
|
Not Compatible
|
2WD, Tremor, Raptor
|
Who Should Choose This Kit?
The ReadyLift 1.5 Inch Leveling Kit for Ford Ranger 4WD is the right choice for 2024 and newer Ranger 4WD owners who want a premium CNC billet aluminum leveling solution that removes factory rake, preserves factory ride quality, and opens up fitment for tires up to 285/70R17 without cutting or permanent modifications. Shop this kit and complete Ranger wheel and tire packages at IMM Hawaii Parts, where our team can help you dial in the perfect setup for your leveled Ranger build.
Whether you're upgrading or replacing parts, contact IMM Hawaii Parts today for reliable products and exceptional customer support.
