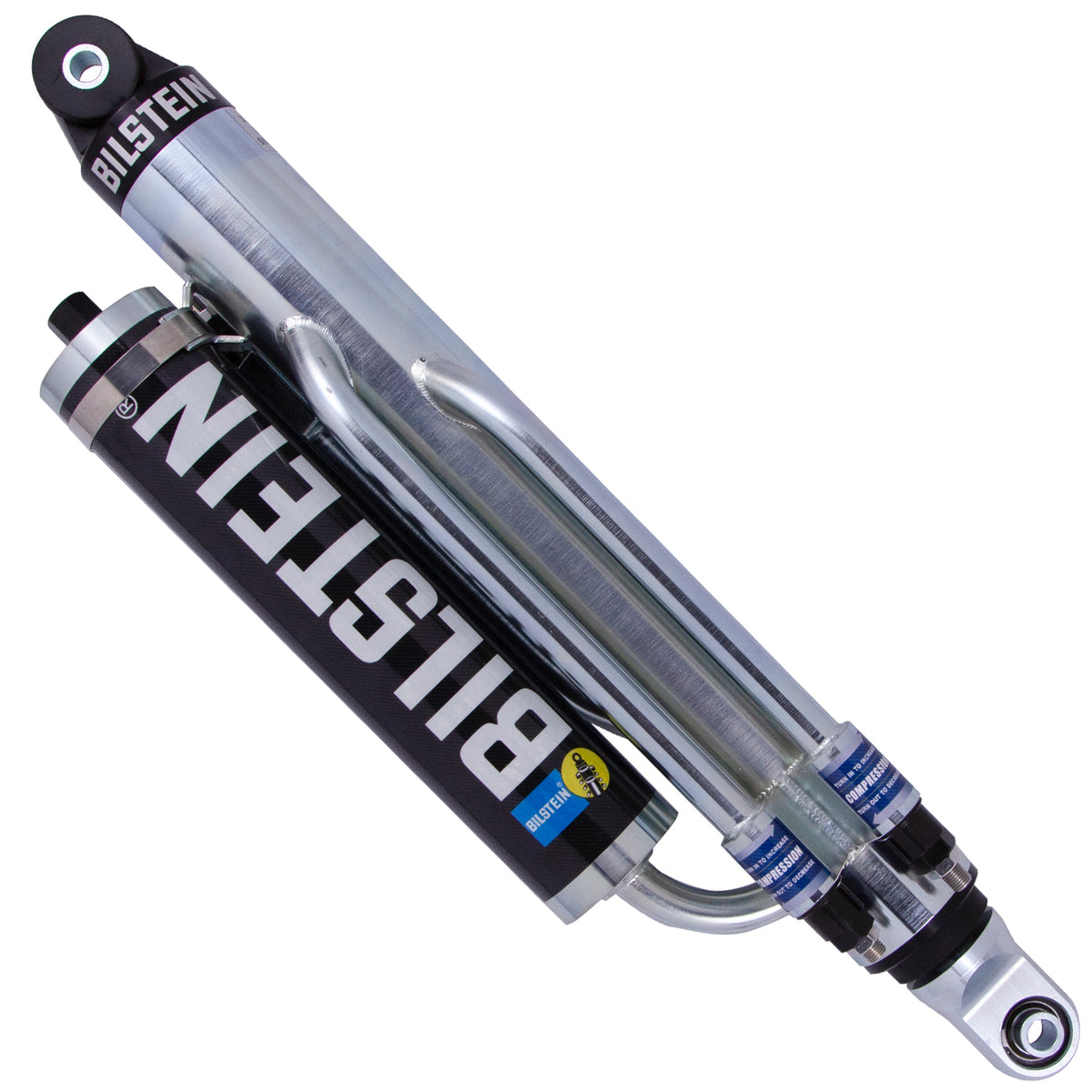

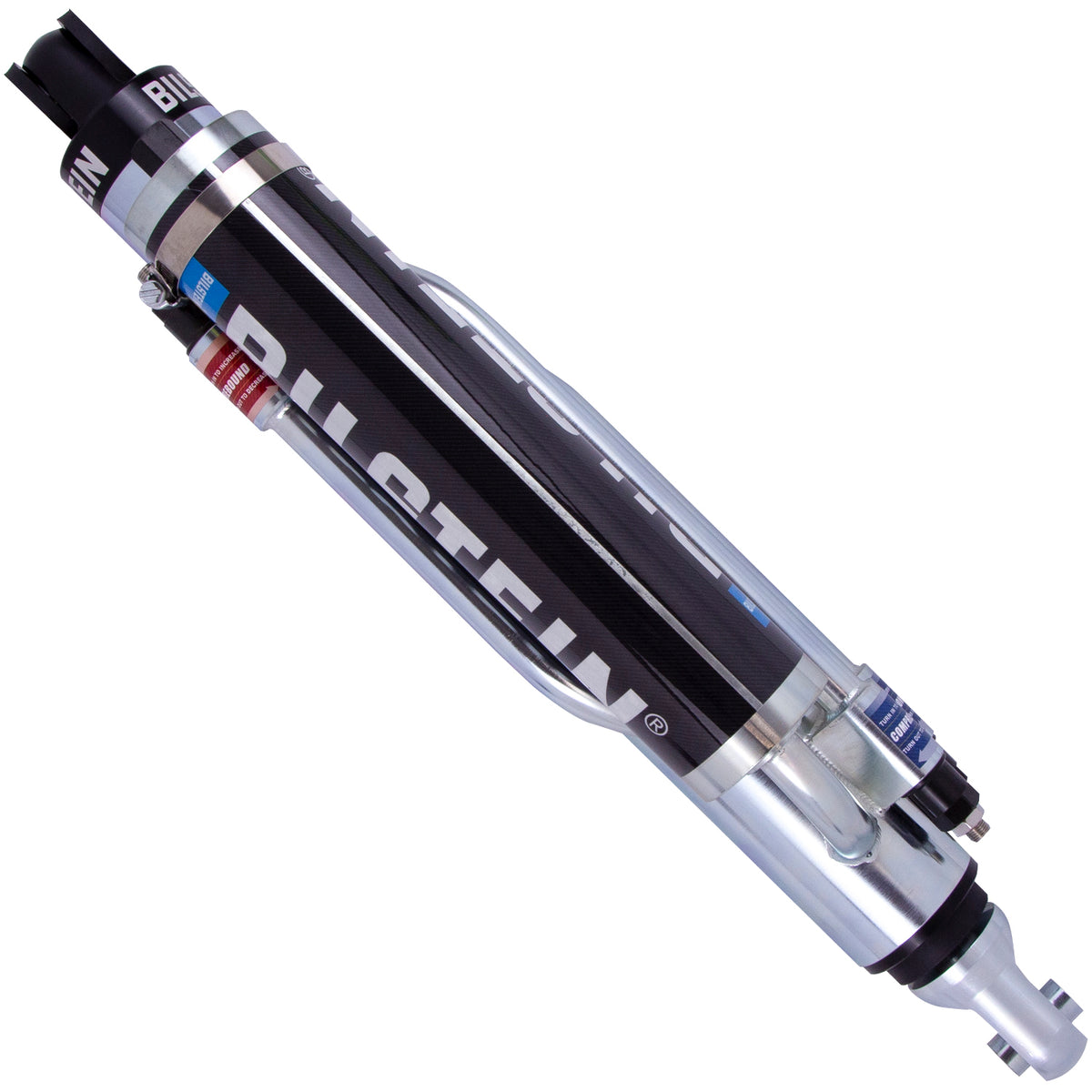

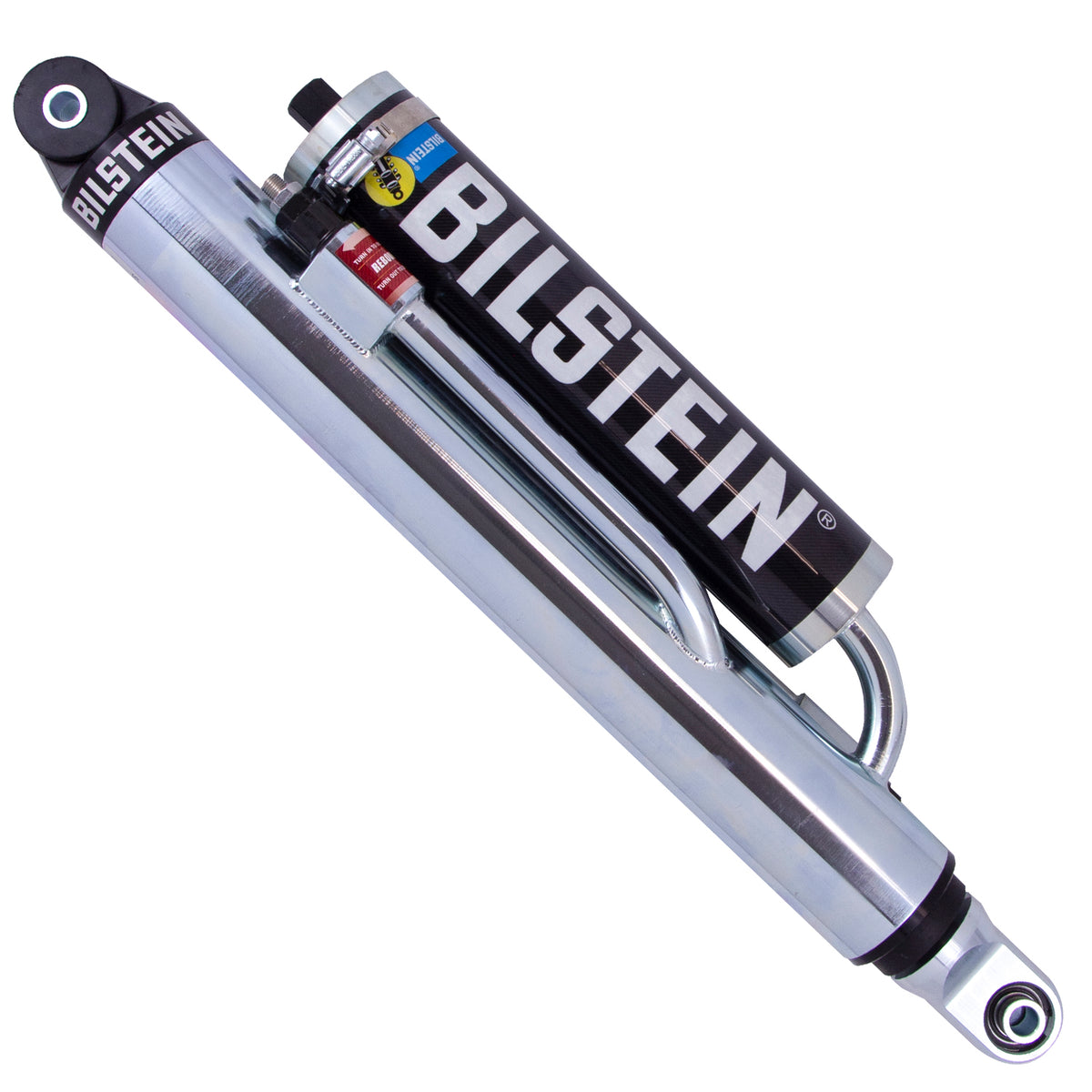

Suspension Shock Absorber 60mm 3-Tube 12 Inch Stroke Right Stand Monotube M 9200 (Bypass) Bilstein

Bilstein M 9200 (Bypass) shock absorbers feature position sensitive damping and are designed specifically for professional off-road motorsports. M 9200 (Bypass) shock absorbers are available in either 3-tube or 4-tube configurations and include a piggyback reservoir.

• M 9200 (Bypass) shock absorbers are for custom fitments and are sold by length. These shock absorbers are completely owner rebuildable and revalvable.
• All service components are readily available and sold separately.

Utilizing an M 9200 (Bypass) shock absorber is the easiest and most effective way to tune an off-road suspension for ultimate performance.

Details:

• Series: M 9200 (Bypass)
• Internal Design:Monotube
• Lower Mount Type: Eye .5x1.5in
• Upper Mount Type: Eye .5x1.5in
• Finish: Zinc Plated
• Body Design: 3-Tube Bypass Screw Top
• Collapsed Length Inch: 21.5
• Compression at 52m s: Custom
• Extended Length Inch: 33.5
• Mount Type: Eye-to-Eye
• Pistion Diameter: 60mm
• Postion: Right
• Rebound at 52m/s: Custom
• Reservior: Yes
• Shaft Diameter mm: 22
• Stroke Travel Length In: 12
• Stroke Travel Length In: 304.8
• Notes: 60mm, 3-Tube, 12. 0 Inch Stroke, Right, Stand
• Warranty: 90 Day Warranty
