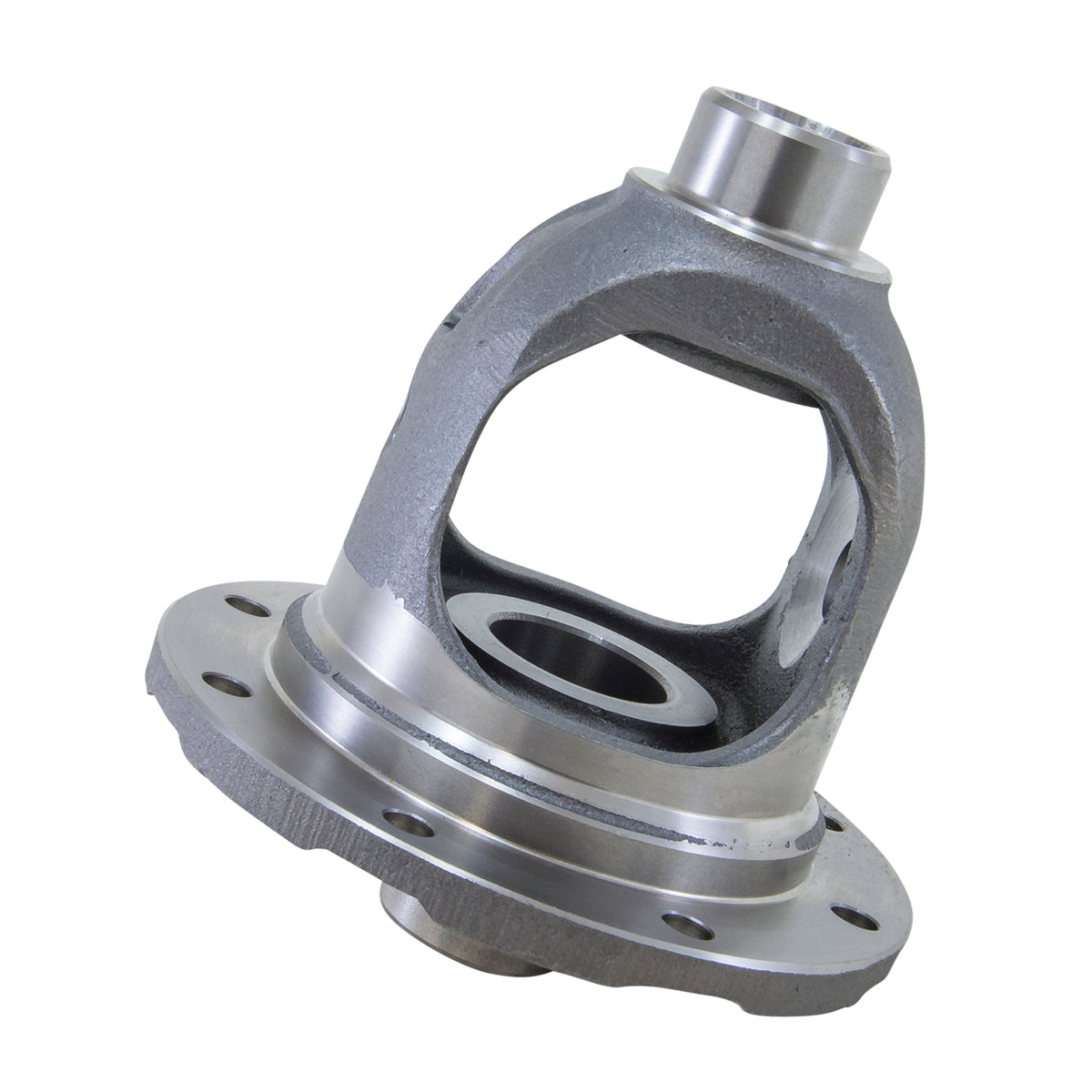

Standard Open Carrier Case Amc Model 35 3.55 & Up M35 3.55&Up+3.27 Std Cse Blt 1.560 Inch S/G Hub Bore 1-5/8 Inch tall Yukon Gear

Model 35 3.55 & up + 3.27, standard Open case, BLT, 1.560 inch side gear hub Bore, 1-5/8 inch tall. Yukon Gear & Axle manufactures a full line of standard open and positraction limited slip carrier cases for a variety of applications.

Each unit is cast and machined to exacting specifications to produce a carrier that provides both high strength and tight tolerances for a long and reliable service life.

Features:

Standard open carrier case Fits AMC Model 35 3.54 ratio and up only Does not include spider gears 1.560 inch side gear bore

Details:

• AAP Selling Package Quantity UOM: EA
• Aap uda 12: EA
• Aap uda 22: 1
• Axle Shaft Spline Quantity: 27
• Cover Bolt Quantity: 10
• Material: Steel
• Type: Non Locking

Late model AMC 35's use a 7/16 inch ring gear bolt. This carrier uses 3/8 inch bolts.

To use this gear set with a factory gear set that uses 7/16 inch bolts you will need to ream the ring gear bolt holes out or purchase a gear set that uses 3/8 inch bolts.

Fitment Notes:

• Model 35
• Bare Standard Open Carrier Case
• 3.55 And Up Carrier Break (also 3.27 Ratio)
• 1.560 inch. Side Gear Hub Bore
• 1-5/8 inch. Tall Deck Height
