ReadyLift 3"F / 2"R SST Lift Kit Pre-load Spacer - 2005-2023 Toyota Tacoma TRD / SR5 / Rock Warrior 2005-2023

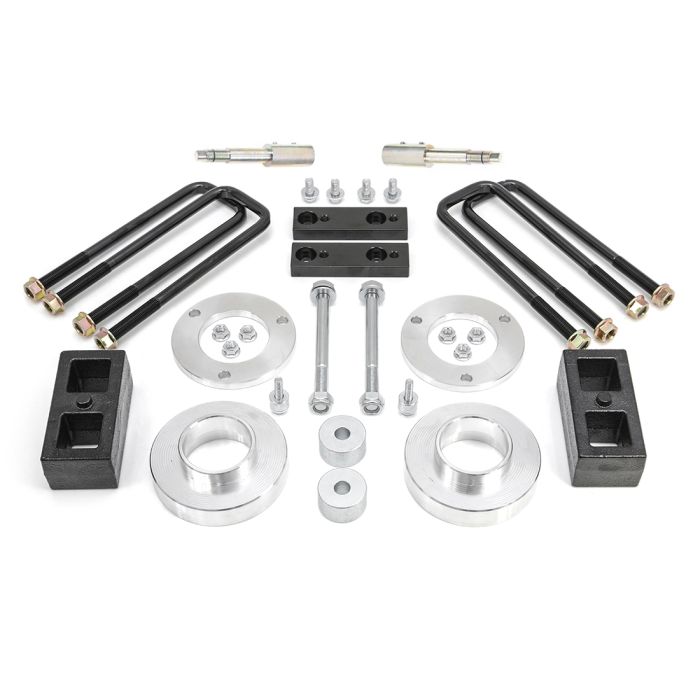

The ReadyLift 3 Inch SST Lift Kit Toyota Tacoma Pre-Load is a precision-engineered front and rear lift solution for 2005 through 2023 Tacoma TRD, SR5, and Rock Warrior 6-lug 2WD and 4WD owners who want a slightly firmer and more responsive front suspension character alongside 3 inches of front lift and 2 inches of rear lift. Part number 69-5530:

This kit uses a CNC-machined billet aluminum pre-load spacer that installs between the factory spring and top hat rather than a traditional top-mount strut extension, delivering a slightly increased front spring rate that reduces nose dive during braking and helps eliminate front side roll during hard cornering at speed. At IMM Hawaii Parts, we carry this kit for Tacoma owners who want a quality bolt-on lift with improved front-end handling characteristics compared to a standard spacer lift.

ReadyLift 3 Inch SST Lift Kit Toyota Tacoma Pre-Load With CNC Billet Aluminum Spacer

The CNC-machined billet aluminum pre-load spacer is the engineering difference that sets this kit apart from the traditional ReadyLift top mount strut extension kits. By installing between the factory spring and the top hat, the preload spacer slightly increases the front spring rate rather than simply adding height above the strut. This increased spring rate gives the lifted Tacoma better resistance to nose dive under hard braking, reduced front body roll during aggressive cornering, and a slightly firmer and more planted front-end feel that enhances the factory driving mannerisms rather than compromising them.

For Tacoma owners who want more than just lift height from their suspension upgrade, this pre-load design delivers a meaningful improvement in front-end handling character. Customers at IMM Hawaii Parts who regularly drive their Tacoma hard on canyon roads and trails appreciate the difference this pre-load approach makes in how the front end feels and responds.

Includes Differential Drop Spacers, Sway Bar Drops, and Skid Plate Spacers

This lift kit includes 1-inch differential drop spacers and hardware to optimize CV joint operating angles after the front lift is installed on 4WD models, sway bar drop spacers to maintain proper sway bar geometry for correct handling stability, and skid plate spacers to keep the factory skid plate properly positioned relative to the lifted front end. These three included geometry correction components address the downstream effects of adding 3 inches of front lift in a comprehensive way that keeps the Tacoma aligned, stable, and properly protected after the lift is installed without requiring separate purchases for these critical components.

OE Style Cast Iron Rear Lift Blocks for the Rear Lift

The 2 inches of rear lift in this kit comes from ReadyLift's legendary OE-style cast iron rear lift blocks with the proper taper and longer U-bolts included for a factory-correct installation. Cast iron construction gives these blocks the strength and rigidity needed to hold the rear of the Tacoma at the correct lift height consistently through regular towing, hauling, and trail use without settling or deforming over time. The proper taper on these blocks ensures the axle sits at the correct angle after the rear lift is installed, maintaining driveshaft geometry and preventing the vibration issues that improperly tapered or untapered blocks can create on the Tacoma platform.

Fits up to 285/65-18 on an 18x9 Wheel at Plus 18 mm Offset

This lift kit creates clearance for tires up to 285/65-18 in diameter on an 18x9 wheel with a plus 18mm offset on the 2005 through 2023 Tacoma. Minor trimming may be required depending on the specific tire brand and tread design. The combination of a 3-inch front lift and improved front-end geometry from the preload spacer gives the Tacoma the clearance and stance needed for a meaningfully more capable tire package than the factory configuration allows.

Made in the USA for Quality and Reliability

This ReadyLift SST lift kit is proudly made in the USA, reflecting the same domestic manufacturing quality standard that ReadyLift applies across its Tacoma lift kit lineup. Made in the USA production ensures consistent quality control, correct dimensions, and the reliability that Tacoma owners expect from a suspension component installed on their truck for years of daily driving and trail use.

Product Details

Why Tacoma Owners Choose This Lift Kit

The ReadyLift 3 Inch SST Lift Kit Toyota Tacoma Pre-Load is built for 2005 through 2023 Tacoma TRD, SR5, and Rock Warrior owners who want a quality, made-in-USA bolt-on lift that delivers 3 inches of front lift and 2 inches of rear lift with improved front handling characteristics from the pre-load billet spacer design. Shop this kit and complete Tacoma wheel and tire packages at IMM Hawaii Parts, where our team can help you find the right lift and tire combination for your specific Tacoma build and driving needs.
