The ReadyLift Front Leveling Spring Kit Ford Super Duty is a Made in USA precision coil spring leveling solution for 2020 through 2026 Super Duty diesel 4WD owners who want 2.5 inches of front lift, clearance for up to 35-inch tires without trimming, and a leveled factory-plus stance without replacing their existing shocks or making permanent changes to the truck. This kit uses precision coil springs that are specifically tuned for diesel 4WD Super Duty trucks, delivering a clean and properly supported 2.5-inch front lift that preserves factory ride quality when paired with the dampers of your choice. At IMM Hawaii Parts, we carry this kit for Super Duty diesel owners who want a properly built leveling solution made in the USA that installs cleanly and performs reliably from day one.
ReadyLift Front Leveling Spring Kit Ford Super Duty Precision Coil Springs Made in USA

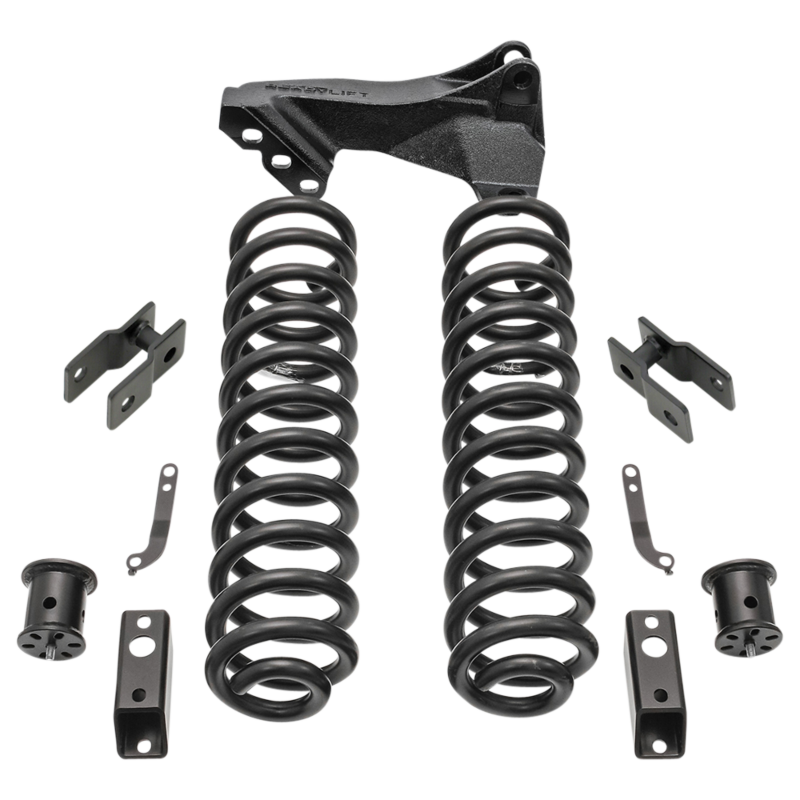

The precision coil springs in this kit are manufactured in the United States to exact specifications for the 2020 through 2026 Ford Super Duty diesel 4WD platform. Made in the USA manufacturing ensures consistent quality, correct spring rates, and proper fitment that imported alternatives may not reliably deliver. These springs are tuned specifically for the weight distribution and suspension geometry of a diesel-powered 4WD Super Duty, which means the leveled ride height is properly supported for the heavy front-end weight that a diesel engine places on the front suspension. The coil spring design also means no shocks are included in this lift kit, giving you the freedom to run your preferred dampers alongside the leveled springs rather than being locked into a specific shock package.
2.5 Inches of Front Lift With No Shocks Required
This leveling kit achieves its 2.5-inch front lift entirely through the precision replacement coil springs rather than relying on spacers or shocks. Replacing the factory coil springs with properly rated leveling springs gives the front suspension more accurate lift height, better spring rate support for the diesel Super Duty front end, and a more factory-like ride character compared to spacer-based alternatives. Because no shocks are included, you can pair these springs with your existing factory shocks, upgraded aftermarket shocks, or the premium dampers of your choice for a completely customized front suspension setup that delivers the exact ride character you want.
Fits Up to 37 Inch Tires With or Without Minor Trimming
This leveling kit creates clearance for tires up to 35 inches in diameter in a direct no-trim fit. For the ideal no-rub setup, 35x12.50 tires on 9- to 10-inch-wide wheels with plus 25 to zero offset fit cleanly without rubbing. For owners who want to push into a larger tire size, tires up to 37 inches are possible with minor trimming. Customers at IMM Hawaii Parts can contact our team for personalized wheel and tire recommendations for their specific Super Duty configuration and intended use.
Tremor Model Compatibility
On 2023 through 2026 Ford Super Duty Tremor models, this leveling kit delivers approximately 1.125 inches over the already elevated Tremor stock ride height rather than the full 2.5 inches over a standard Super Duty baseline. This difference is important for Tremor owners to account for when planning their wheel and tire setup and final ride height expectations.
Important Notes for Onboard Scale and Track Bar Applications
Super Duty trucks from 2023 through 2026 equipped with the Onboard Scale feature require the Auto-Leveling Headlight Bracket kit, part number 67-23210, as a separate purchase alongside this leveling spring kit to ensure proper headlight alignment after the lift is installed. For 2020 through 2026 Super Duty trucks, some applications may require retaining the factory track bar bracket rather than using the included relocation bracket. If the axle is off-center with the relocation bracket installed, remove the relocation bracket and reinstall the factory track bar bracket to properly center the axle.
Product Details
|
Specification
|
Details
|
|
Compatible Vehicle
|
2020 to 2026 Ford Super Duty 4WD Diesel
|
|
Brand
|
ReadyLift
|
|
Lift Height
|
2.5 inches Front
|
|
Spring Type
|
Precision Coil Springs
|
|
Country of Manufacture
|
USA
|
|
Shocks Included
|
No
|
|
Max No Trim Tire
|
35 inches
|
|
Max With Trimming
|
37 inches
|
|
Ideal No Rub Setup
|
35x12.50 on 9 to 10 inch wide, plus 25 to Zero Offset
|
|
Tremor Lift Gain
|
Approximately plus 1.125 inches Over Stock Tremor Height
|
|
Onboard Scale Note
|
Requires PN 67-23210 Headlight Bracket Kit Separately
|
Who Should Choose This Kit Product?
The ReadyLift Front Leveling Spring Kit Ford Super Duty is the right choice for 2020 through 2026 Super Duty diesel 4WD owners who want a Made in USA precision coil spring leveling solution that delivers 2.5 inches of front lift, clears up to 35-inch tires without trimming, and works with their existing shocks. Shop this kit and complete Super Duty wheel-and-tire packages at IMM Hawaii Parts, where our team can help you build the perfect leveled Super Duty setup for towing, hauling, and trail use.
