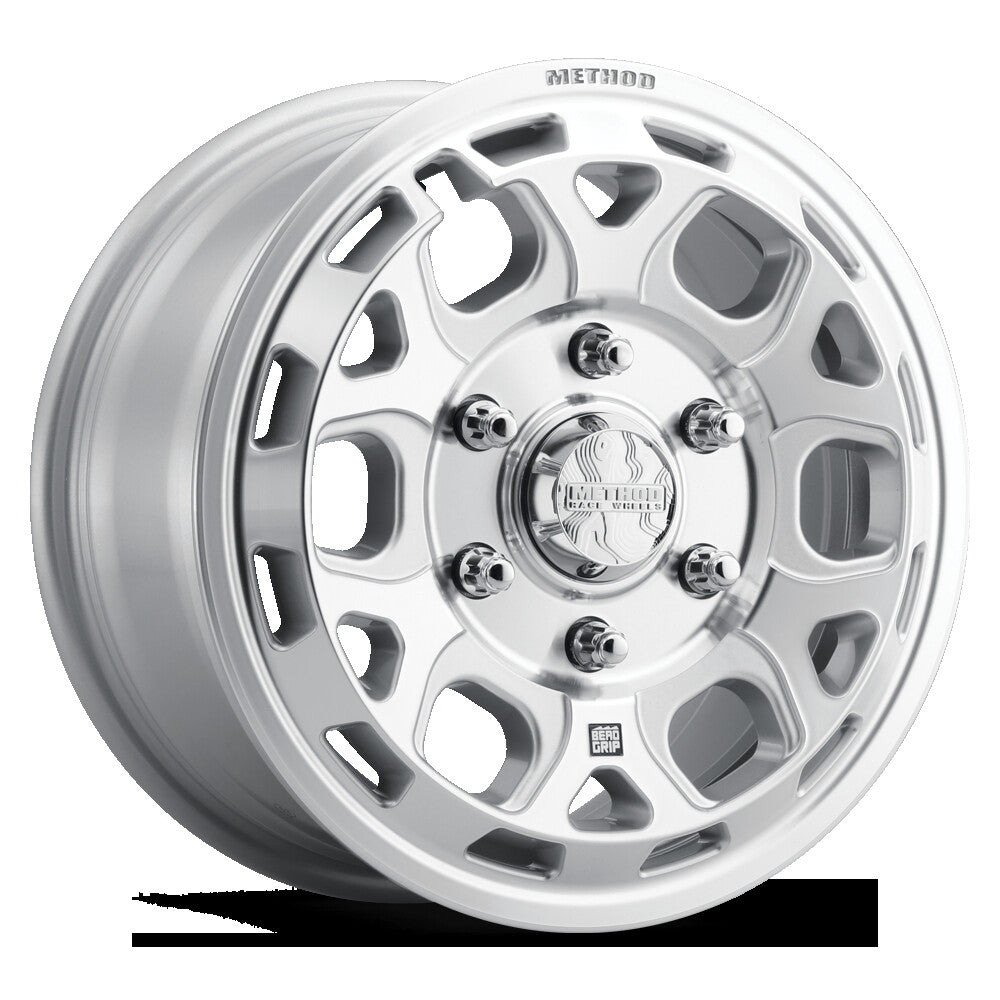

MR416 Bead Grip, 15x7, Method Race Wheels

Modern UTVs don't just go farther, they go harder. They climb steeper, hit faster, and take punishment that used to end a ride early.

This wheel was built for that reality, featuring the strength of Method's race proven engineering combined with the security of exclusive Bead Grip Technology. For the full throttle runs, the unexpected hits, and the kind of terrain that doesn't forgive mistakes.

Because when your machine evolves, your gear has to keep up.

Details:

• Series: UTV (4XX)
• Model: MR416 Bead Grip
• Wheel Diameter Inch: 15 Inch
• Wheel Width Inch: 7 Inch
• Bolt Pattern: 5x4.5
• Bolt Hole: 5
• Bolt Diameter: 4.5
• Offset mm: 55 mm
• Backside Spacing Inch: 6.1 Inch
• ATV Offset B+F: 6+1
• Hub Bore mm: 68 mm
• Wheel Weight LBS: 19.18 LBS
• Max Load LBS: 1800 LBS
• Color/Finish: Gloss Black
• Application: 15x7, 5x4.5, 55 OS, 1800 lbs
• Cap Part: CP-TOPO40S-B
• Cap Type: Snap In
• Hub Centric Yes/No: Yes
• Lug Hole Diameter mm: 14.1 mm
• Lug Taper Angle: 60
• Mount Pad Diameter mm: 180 mm
• Spoke Depth At 90mm: 0
• Spoke Depth At 100mm: 3.8
• Spoke Depth At 120mm: 11.3
• Spoke Depth At 160mm: 23.6
• Inner Wheel Radius At 50mm: 177.7
• Inner Wheel Radius: 165.3
• Cap Bore mm: 68 mm
• Cap Clearance Height mm First Obstruction: 39
• Cap Clearance Height mm End Of Cap: 39
• Lip Size mm: 0 mm
• Lip Size Inch: 0 Inch
• CBM: 0.051529
