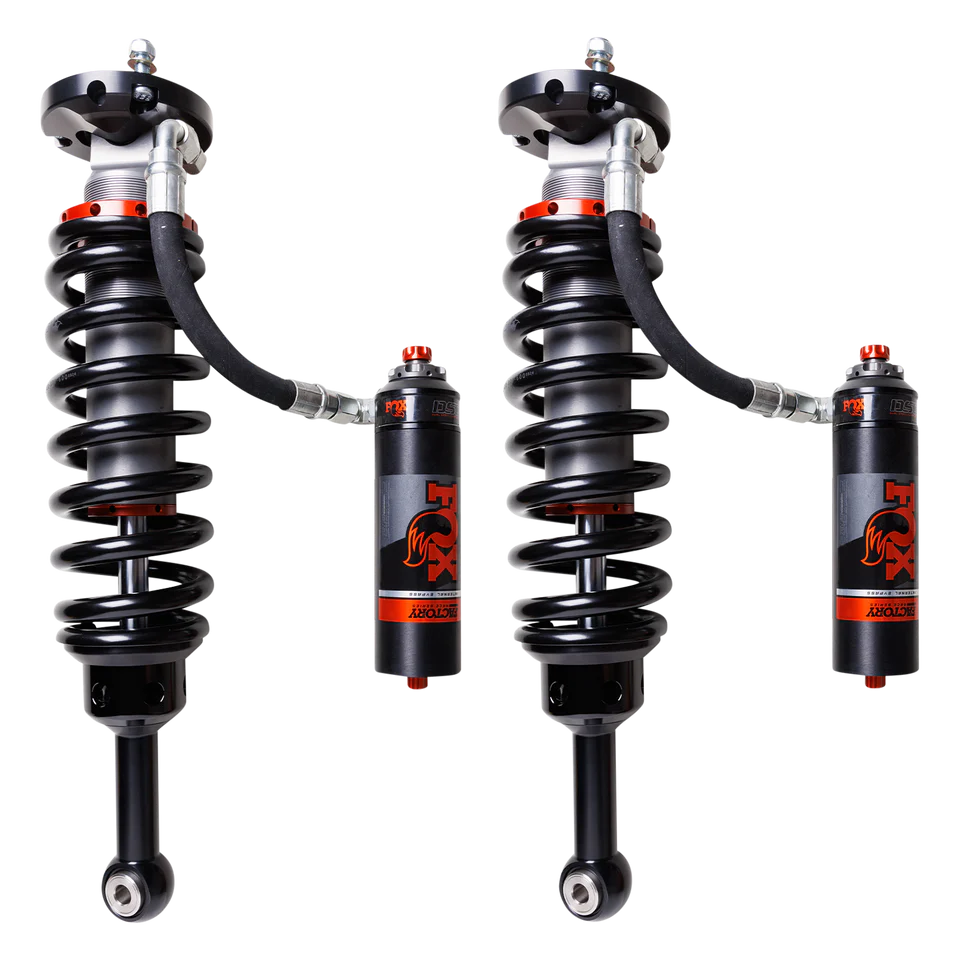

Fox 2.5 DSC Coilovers 05-23 Toyota Tacoma +6

The Fox 2.5 DSC Coilovers for the Toyota Tacoma with a 6-inch lift bring Factory Race Series Internal Bypass technology to 2005 through 2023 Tacoma owners who want race-proven damping performance in a true bolt-on package. Built around a 2.5-inch aluminum body with a Type III hard-anodized finish, these coilovers feature patented Internal Bypass damping, a Dual Speed Compression adjuster, and an external reservoir with an internal floating piston for consistent and controlled performance on the street and on demanding off-road terrain. If you want the highest level of Fox suspension technology available for your lifted Tacoma, the Fox 2.5 DSC Coilovers Toyota Tacoma 6 Inch Lift deliver it in a complete and purpose-built package.

Fox 2.5 DSC Coilovers Toyota Tacoma 6 Inch Lift With Internal Bypass Technology

The patented Internal Bypass technology at the core of these coilovers creates multiple zones of damping control that deliver a fundamentally different suspension experience than conventional shocks. In the comfort ride zone, shock fluid bypasses the main piston through bleed ports, providing a smooth and controlled feel for everyday driving and moderate terrain. As the shock moves past this zone under hard compression or rebound, the bleed ports close and force all fluid through the main piston, dramatically increasing damping to prevent harsh bottom-outs and top-outs when the terrain gets rough. This velocity- and position-sensitive damping is what gives Fox Factory Race Series shocks their reputation for handling everything from smooth highway cruising to aggressive off-road impacts with equal capability.

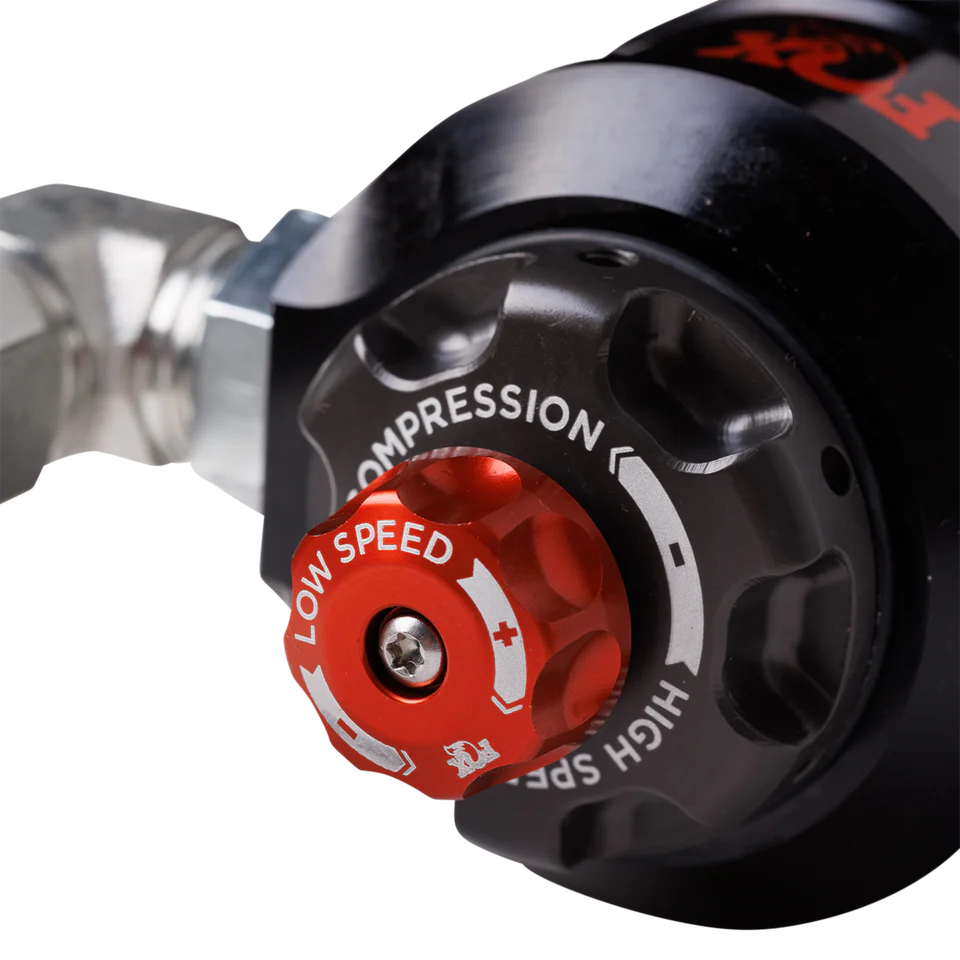

Dual Speed Compression Adjuster for Fine-Tuned Performance

The Dual Speed Compression Adjuster on these coilovers gives you the ability to fine-tune the suspension response of your Tacoma for different load conditions, terrain types, and driving styles without removing the shocks or making internal changes. The DSC adjuster allows independent adjustment of high-speed and low-speed compression damping, giving you precise control over how the shock responds to both sharp impacts and slow body movements. This level of adjustability is what separates the Fox 2.5 DSC coilovers from standard non-adjustable alternatives and makes them a long-term investment that can be dialed in as your build and driving preferences evolve.

External Reservoir With Internal Floating Piston for Heat Management

The external reservoir on these coilovers boosts total oil capacity beyond what the main shock body holds, giving the damper more fluid volume to work with during sustained hard use. An internal floating piston inside the reservoir separates the shock oil from the nitrogen charge, keeping damping consistent and temperatures controlled through long rough runs where heat buildup would cause performance to drop in a standard shock setup. This combination of increased oil volume and IFP separation is what allows these coilovers to maintain consistent performance from the first mile of a trail run to the last.

Type III Hard Anodized 2.5 Inch Aluminum Body

The 2.5-inch diameter aluminum shock body is finished with a Type III hard anodized coating that provides superior resistance to corrosion, abrasion, and the general surface wear that comes with regular off-road use. The larger 2.5-inch body diameter compared to standard 2.0-inch shocks provides more oil volume, better heat dissipation, and greater overall durability through the kind of hard use that Fox Factory Race Series products are designed for. The finished body looks sharp and holds up well through seasons of demanding trail use without degrading.

Product Details

Who These Coilovers Are For

The Fox 2.5 DSC Coilovers Toyota Tacoma 6 Inch Lift is the ideal upgrade for 2005-2023 Toyota Tacoma owners who want the highest level of Fox suspension performance for a 6-inch lifted setup. Available at IMM Hawaii Parts, this system features Internal Bypass damping, a Dual Speed Compression (DSC) adjuster, an external reservoir with IFP, and a hard-anodized 2.5-inch aluminum body. Together, these components deliver race-proven performance, precise adjustability, and a true bolt-on solution engineered specifically for the 6-inch lifted Toyota Tacoma platform.

Have questions about fitment, installation, or product selection? Get in touch with IMM Hawaii Parts, and our team will be happy to help.
