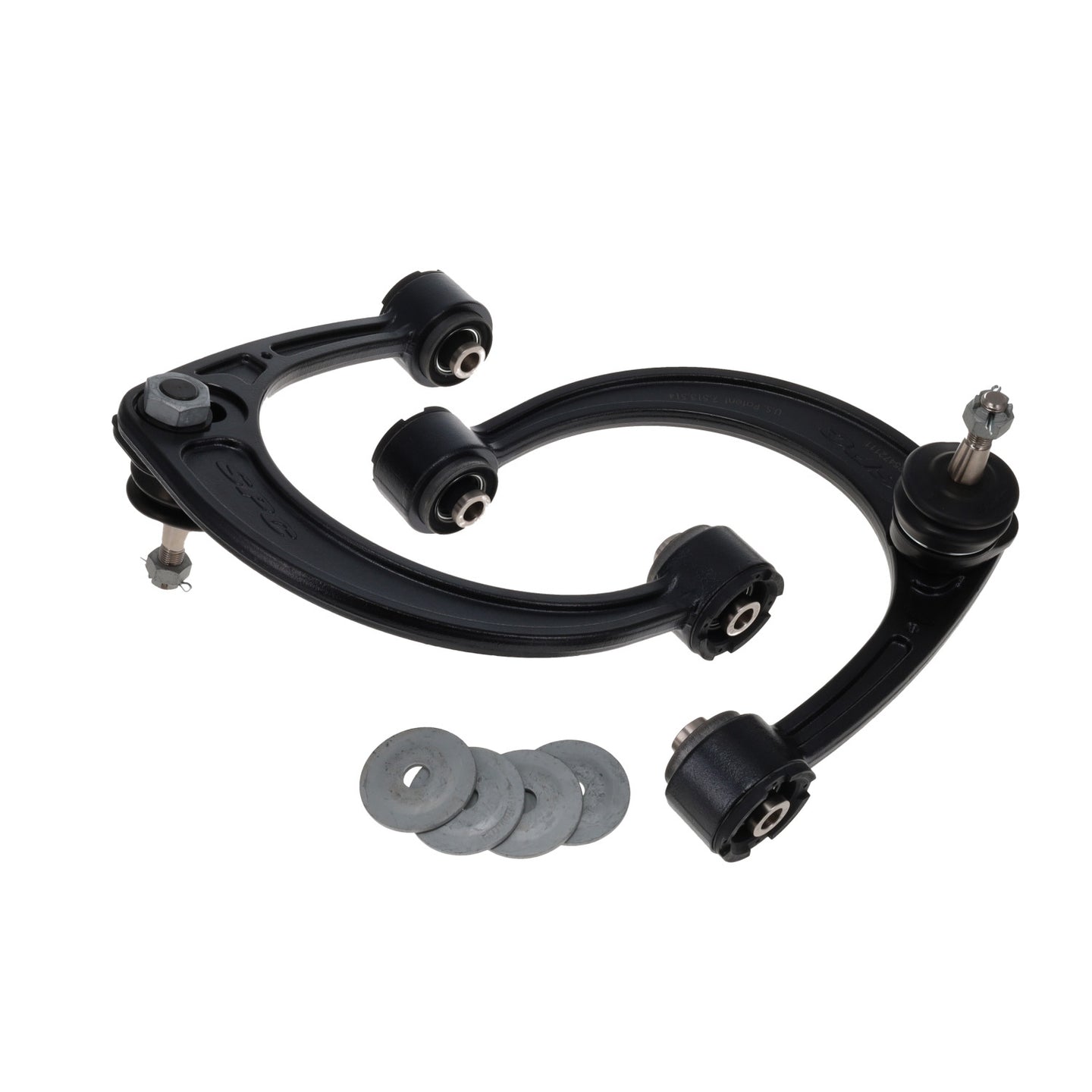

The SPC UCA 25470 Toyota Tacoma upper control arms are the go-to alignment solution for Tacoma owners who have lifted their truck and need to correct camber, caster, and suspension travel at the same time. Sold as a pair and designed, engineered, tested, and assembled in Colorado, the SPC UCA 25470 Toyota Tacoma arms address every alignment and suspension problem that a lift creates, restoring proper handling, reducing tire wear, and giving your Tacoma the suspension performance it should have after a lift is installed.
SPC UCA 25470 Toyota Tacoma Arms Correct Camber and Caster After a Lift
Lifting a Tacoma throws off the factory caster and camber settings immediately, and driving on uncorrected alignment accelerates tire wear and reduces straight-line stability in ways that become more noticeable over time. The SPC UCA 25470 Toyota Tacoma arms come with plus two degrees of caster built in and an adjustable range of zero to plus four degrees of caster, alongside plus or minus two degrees of camber adjustment. This combination gives you precise control over your alignment settings so you can dial your lifted Tacoma back to proper spec and restore the drivability and tracking feel that a well-aligned truck should have.

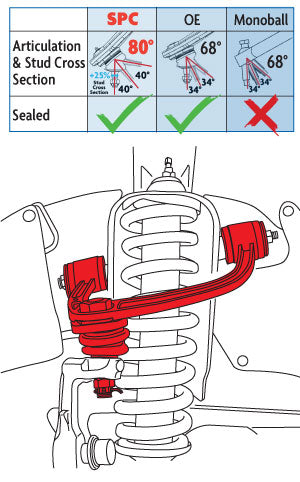

80 Degree Ball Joint Articulation for Maximum Suspension Travel
The oversized SPC ball joints on these arms deliver 80 degrees of articulation, which gives your Tacoma significantly more suspension travel than typical ball joint or monoball-style upper control arms provide. The xAxis sealed flex joints are housed in bonded rubber sleeves and pivot freely to maximize droop travel, giving your suspension more compliance and movement on rough terrain and off-road trails. For Tacoma owners who want both improved on-road alignment and better off-road suspension performance, the SPC UCA 25470 Toyota Tacoma delivers both in one set of arms.
Center Your Tire and Eliminate Wheel Well Rubbing
Running oversized tires on a lifted Tacoma often creates fitment issues that lead to rubbing against the wheel well or fender liner. The SPC UCA 25470 Toyota Tacoma arms allow you to use the upper control arm adjustment alongside OE lower cam bolts to move oversized tires forward in the wheel well and maximize clearance without trimming fenders. This makes these arms a particularly smart investment for Tacoma owners running 33-inch or larger tires who want clean fitment without body modifications.
Maintenance-Free Ball Joints and Forged Steel Build
The SPC UCA 25470 Toyota Tacoma arms are equipped with maintenance-free ball joints that deliver reliable performance without requiring regular greasing or servicing. The forged steel construction throughout each arm provides the strength and rigidity needed for harsh off-road environments and demanding trail use, where weaker materials would bend or fail over time. These arms are industry-proven in off-road and racing applications, which means the durability behind the design has been tested under real conditions, not just in a lab.
Replacement Lower Cam Bolt Options for Older Tacomas
If your factory lower cam bolts are corroded or seized during installation, SPC offers compatible replacement assemblies. For 2005 through 2015, Tacoma models use SPC part number 25435. For 2016 and newer Tacoma models, use SPC part number 25440. Having these options ensures your installation goes smoothly, even on higher mileage trucks where factory hardware has degraded over time.
Product Details
|
Specification |
Details |
|
Part Number |
SPC 25470 |
|
Compatible Vehicle |
2005 to 2023 Toyota Tacoma |
|
Sold As |
Pair |
|
Caster Built In |
Plus 2 Degrees |
|
Caster Adjustable Range |
0 to Plus 4 Degrees |
|
Camber Adjustment |
Plus or Minus 2 Degrees |
|
Ball Joint Articulation |
80 Degrees |
|
Joint Type |
xAxis Sealed Flex Joints in Bonded Rubber Sleeves |
|
Ball Joints |
Maintenance Free |
|
Construction |
Forged Steel |
|
Assembled |
Colorado, USA |
|
Replacement Cam Bolts 2005 to 2015 |
SPC 25435 |
|
Replacement Cam Bolts 2016 and Newer |
SPC 25440 |
Who These Arms Are For
The SPC UCA 25470 Toyota Tacoma upper control arms are the right investment for any 2005 through 2023 Tacoma owner who has installed a lift and needs proper camber and caster correction, along with better suspension travel and tire clearance. Forged steel construction, maintenance-free ball joints, 80-degree articulation, and precise adjustability make these arms one of the most complete upper control arm solutions available for the lifted Tacoma platform.
Have questions about fitment, installation, or product selection? Get in touch with IMM Hawaii Parts, and our team will be happy to help.
