The ReadyLift 3 Inch SST Lift Kit for the 2024 and 2025 Toyota Tacoma is a straightforward and capable bolt-on lift solution for Tacoma owners who want more ground clearance and the ability to run larger, more aggressive tires without cutting, welding, or modifying any factory components. Part number 69-54300, this kit delivers 3 inches of front lift and 2 inches of rear lift through coil spring spacers, and comes with tubular steel upper control arms featuring a market-leading heavy-duty high-angle proprietary ball joint. For Tacoma owners who want a clean and reliable lift that opens up a wide range of tire options on the new platform, the ReadyLift 3 Inch SST Lift Kit Toyota Tacoma 2024-2025 is a proven and practical choice.
ReadyLift 3 Inch SST Lift Kit Toyota Tacoma 2024-2025 Bolt-On With No Modifications Required
This lift kit is designed to install using a completely bolt-on process with no modifications to any factory components required. No cutting of OEM parts, no welding, and no permanent alterations to the Tacoma structure are involved at any point during the installation. The 3-inch front lift and 2-inch rear coil spring spacers bolt into the existing mounting locations on the 2024 and 2025 Tacoma, making this kit one of the cleanest and most straightforward lift options available for new Tacoma owners who want lift without complexity.

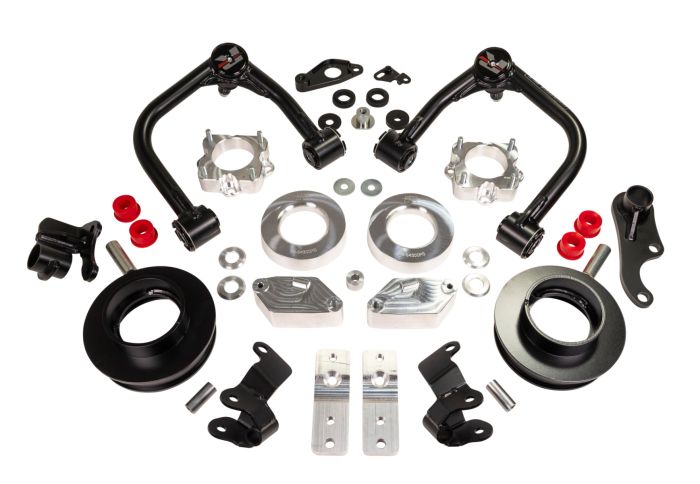

Tubular Steel UCAs With Heavy Duty High Angle Ball Joint
Included in this kit are tubular steel upper control arms equipped with ReadyLift's heavy-duty high-angle proprietary ball joint, designed to handle the increased suspension travel angles that come with a 3-inch front lift. The high-angle ball joint prevents the binding and premature wear that occurs when factory upper control arms are used at lifted ride heights, keeping the front suspension moving freely through its full range of travel on the street and on the trail. The tubular steel construction provides the strength and rigidity needed for consistent performance under lifted front suspension use.
Wide Range of Tire Fitment Options
The ReadyLift 3 Inch SST Lift Kit opens up a meaningful range of larger tire options for the 2024 and 2025 Tacoma. Without any trimming, the kit supports up to 285/75R17 on an 8-inch-wide wheel with a plus-35 offset, and up to 295/55R20 on an 8.5-inch-wide wheel with a plus-35 offset. For owners who want to go even larger, 315/70R17 and 35x12.50R17 tires fit with only minor trimming required. This flexibility gives Tacoma owners a clear upgrade path for a more aggressive tire package without being locked into a narrow set of fitment options.

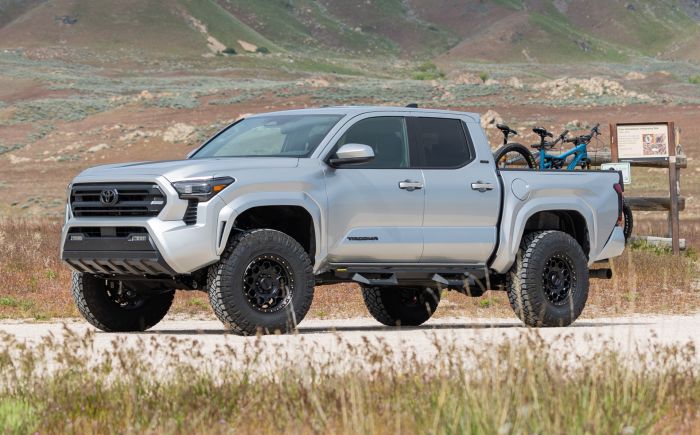

3 Inch Front Lift and 2 Inch Rear Lift for a Level Stance
The combination of 3 inches of front lift and 2 inches of rear lift from the coil spring spacers gives the 2024 and 2025 Tacoma a more level and aggressive stance compared to the factory rake. The rear spacers install over the existing rear springs without modification, keeping the installation clean and the rear suspension geometry within safe parameters. The result is a truck that looks purposeful and sits confidently with the increased ground clearance needed for a more aggressive tire package.
Product Details
|
Specification
|
Details
|
|
Compatible Vehicle
|
2024 to 2025 Toyota Tacoma
|
|
Brand
|
ReadyLift
|
|
Part Number
|
69-54300
|
|
Front Lift
|
3 inches
|
|
Rear Lift
|
2 inches via Coil Spring Spacers
|
|
Upper Control Arms
|
Tubular Steel with High Angle Ball Joint
|
|
Install Type
|
Bolt On, No Cutting or Welding
|
|
Max Tire No Trim
|
285/75R17 on 8-inch plus 35 offset
|
|
Max Tire No Trim
|
295/55R20 on 8.5-inch plus 35 offset
|
|
Large Tire with Trimming
|
315/70R17 and 35x12.50R17
|
Who This Kit Is For
The ReadyLift 3 Inch SST Lift Kit Toyota Tacoma 2024-2025 is the right choice for new Tacoma owners who want a clean, bolt-on lift with tubular steel UCAs and the flexibility to run tires from 285s up to 35 inches with minor trimming. No cutting, no welding, and a straightforward installation make this kit one of the most accessible and reliable lift options available at IMM Hawaii Parts for the 2024 and 2025 Tacoma platform.
Have questions about fitment, installation, or product selection? Get in touch with IMM Hawaii Parts, and our team will be happy to help.
