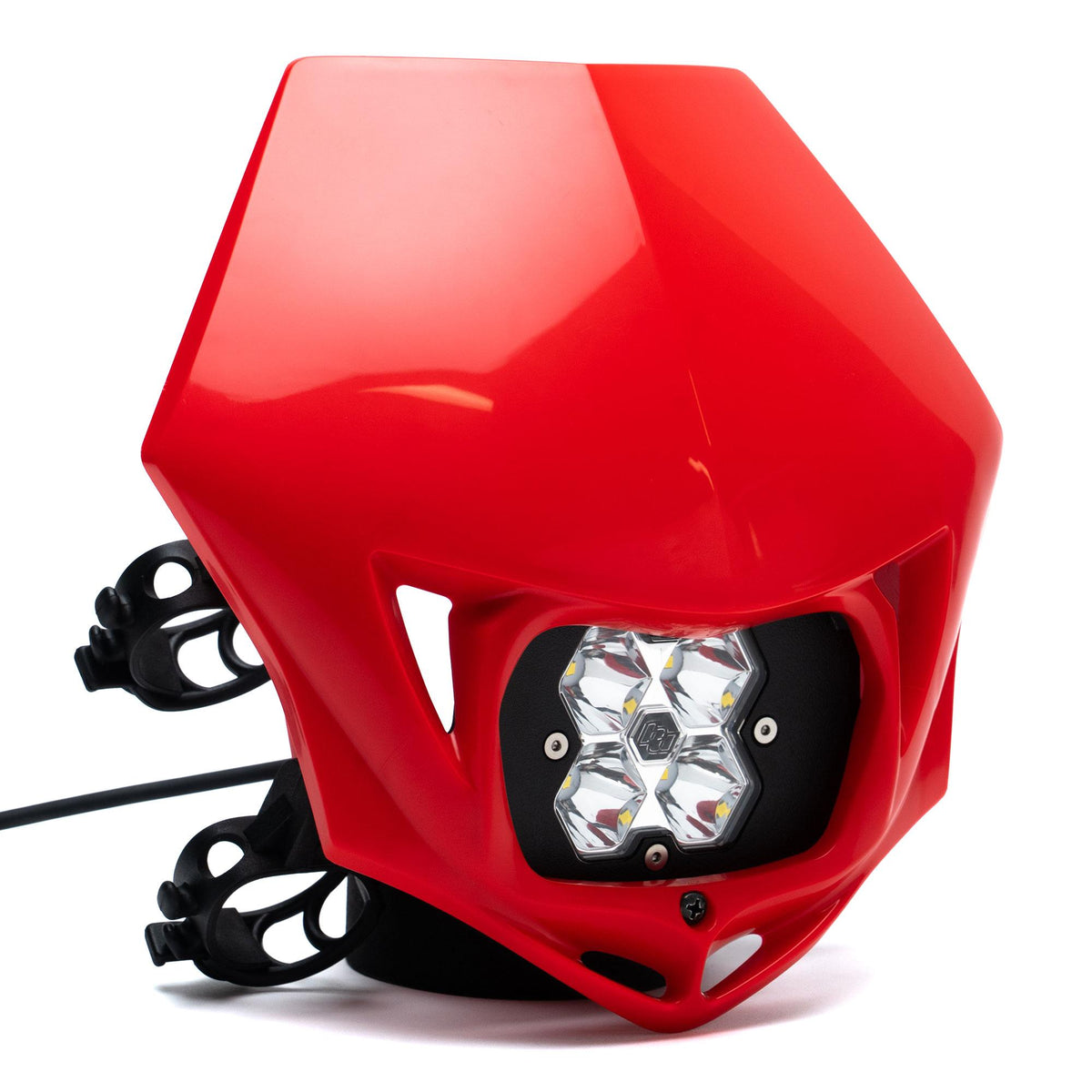

Squadron 2.0 Sport Motorcycle (D/C) LED Headlight Kit w/Shell Universal Red Spot Clear Baja Designs

Squadron 2.0 Sport Universal Motorcycle D/C headlight kits bring your motorcycle lighting to the next level. Squadron 2.0 Sport is housed in our universal moto shell, and features next-generation optics that offer a powerful 3,200-lumen output at 30W - delivering a 26 percent increase in performance over the previous generation with improved beam control and efficiency. Precision-engineered optics create a refined beam pattern that throws light farther and wider while minimizing wasted spill, giving you more usable illumination exactly where you need it.

Squadron 2.0 Sport delivers superior clarity and confidence on your rides after the sun goes down. Every detail has been upgraded to raise the bar for small LED light pods while maintaining the proven reliability that defines Baja Designs.. Squadron 2.0 Sport stands at the top of its class.

New features include updated lens patterns optimized for the redesigned optics, a rugged 4-pin Deutsch connector for enhanced durability, and an all-new Rgb backlight feature with nine selectable colors to match your bike's style. Improved uService components include clip-in reflectors that stay secure during lens swaps, plus a redesigned gasket for better sealing and long-term protection from the elements. Squadron 2.0 Sport universal motorcycle headlight kit is for rider's who demand uncompromising night-time visibility.

Like all Baja Designs products, it's backed by our 30-Day Satisfaction Guarantee and Limited Lifetime Warranty for complete peace of mind.

• Refined beam pattern provides greater distance, wider coverage, and reduced light spill
• Rgb backlight with 9 selectable colors to match your motorcycle
• New clip-in reflectors stay secure during lens changes, improving uService
• New gasket design improves sealing and protection against the elements
• Housed in our universal motorcycle headlight shell
• Standard 4-pin Deutsch connector for improved wiring harness durability

Squadron 2.0 Sport Specifications:

• Lumens: 3,200
• Watts/Amps: 30W/2.2A at 13.8V
• Operational Voltage: 12-32V
• Note: This Headlight Kit is for Motorcycles with D/C stator output.

• Specifications:
  • Brightness (Lumens): 3,200 lm
  • Amperage Rating (A): 30W / 2.2A at 13.8V
  • Voltage: Operating White Light Voltage: 10 - 36V; Operating Backlight Voltage: 11-14V
  • Description: Backlight: 9-Colors
  • Terminal Connector: Deutsch

• Standards & Compliance:
  • Standards/Compliance (Water Resistance): IP69K

• Dimensions:
  • Depth (in.): 3.32 Inch
  • Height (in.): 3.29 Inch
  • Length (in.): 2.84 Inch
