Product details
The Reflex Light Actuator wiring harness for power management systems such as sPOD, Switch Pros and others allow users the ability to wire and control the up and down movement of the actuators through their control module.
Enthusiasts can select from a single harness, that when paired with an actuator linking harness can control three to eight actuators together, or the pair harness that will power one to two actuators in sync. Harnesses are sold separately to provide flexibility for user's existing lighting setups.
64-6305 - Pair harnesses are designed for use with single and pair lighting setups, including light bars and A-pillar kits. For 10 inch light bars using single actuator, extra lead can be tucked away.

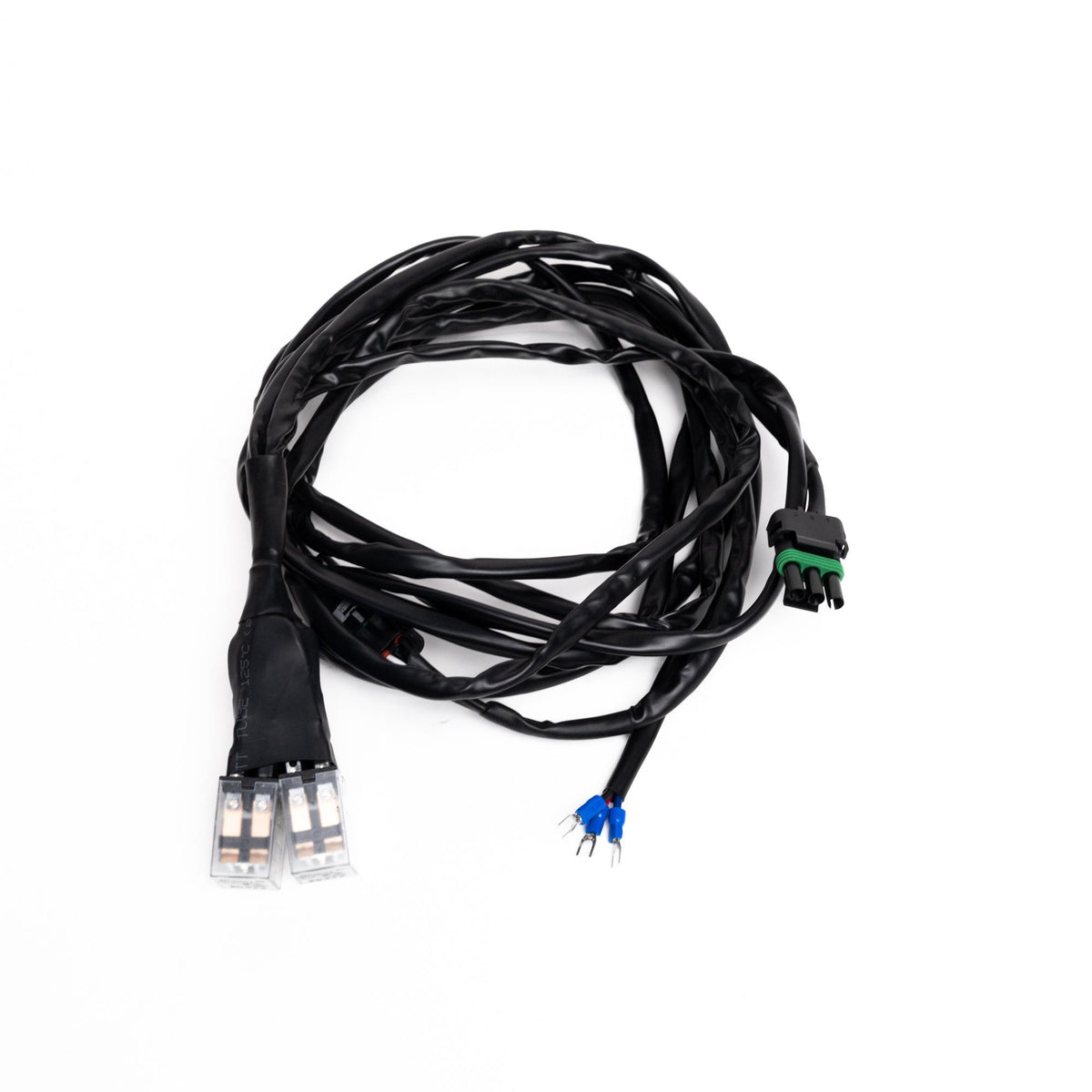

64-6304 - Need to control multiple actuators at once? This single lead 3-pin power management actuator harness can be paired with any actuator linking harness to power multiple actuators at the same time.
For example, to actuate a 4-light LP9 bumper setup with a momentary switch and one actuator per light: (1x - 64-6304) power management single lead actuator harness and (1x - 64-0194) 4 actuator linking Harness.
Actuator Linking Harnesses for use with 64-6304:
- 64-0193 – 3 Actuator Linking Harness
- 64-0194 – 4 Actuator Linking Harness
- 64-0195 – Actuator Linking Harness
- 64-0190 – 6 Actuator Linking Harness
- 64-0191 – 7 Actuator Linking Harness
- 64-0192 – 8 Actuator Linking Harness
