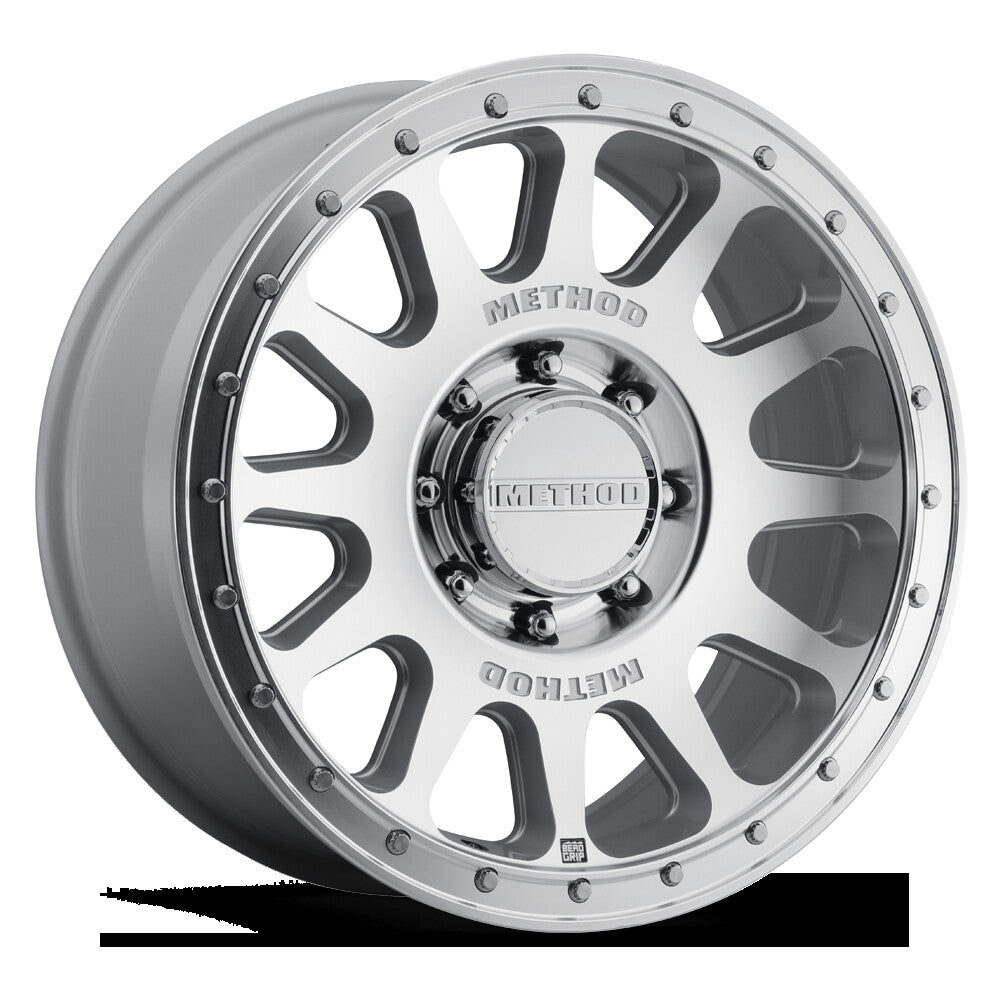

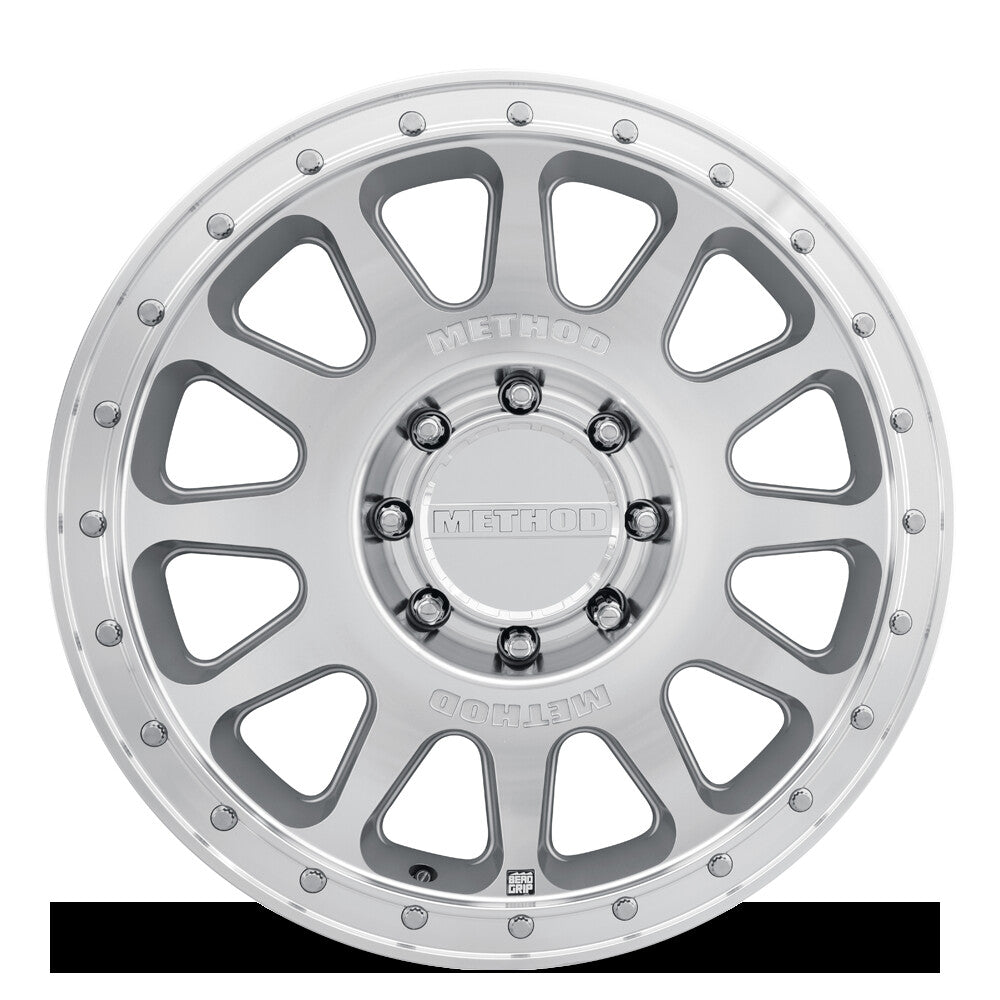

MR709 HD Bead Grip, 20x9, +12mm Offset, 8x170, 125mm Centerbore, Machined Clear Coat, Method Race Wheels

Introducing the 709 HD Bead Grip from Method. Designed to deliver on both strength and style, this wheel features our patented Bead Grip technology to keep tires secure under extreme aired down conditions.

With ultra heavy duty load ratings across all applications, the 709 HD is built to handle whatever you throw at it, on or off the road. For added lip protection and a customized look, the optional Forged Impact Ring (sold separately) bolts on with included 12 point hardware.

Performance meets personality, backed by Method's signature design and industry best warranty.

Features and Benefits:

• Patented Bead Grip technology engages tire bead for increased grip at low tire pressures
• Heavy Duty (HD) 3310 lbs. and 4500 lbs. load ratings for maximum payload
• Solid A356 aluminum with T6 heat treatment construction
• Iconic 12 window design with debossed Method logos
• Replaceable 12-point lip bolts with optional colors available
• Optional Forged Impact Rings available in raw and additional colors
• Aggressive safety hump on bead seats further prevents debeading
• Reinforced inner lip taken from Mrw race wheel increases strength
• New Black or Chrome Snap-in center cap with embossed Method logo - including 8 lug
• Hub centric fitments for common applications

Details:

• Series: TRAIL (7XX)
• Model: MR709 HD Bead Grip
• Wheel Diameter Inch: 20 Inch
• Wheel Width Inch: 9 Inch
• Bolt Pattern: 8x170
• Bolt Hole: 8
• Bolt Diameter: 170
• Offset mm: 12 mm
• Backside Spacing Inch: 5.5 Inch
• Hub Bore mm: 125 mm
• Wheel Weight LBS: 52.91 LBS
• Max Load LBS: 4500 LBS
• Color/Finish: Machined - Clear Coat
• Application: 20x9, 8x170, 12 OS, 4500 lbs
• Cap Part: CP-MRWBG133H50-C
• Cap Type: Snap In
• Accessory Bolt PN: BT-BOLT 12P SS
• Lug Hole Diameter mm: 16.2 mm
• Lug Taper Angle: 60
• Mount Pad Diameter mm: 200 mm
• Spoke Depth At 90mm: 0
• Spoke Depth At 100mm: 0
• Spoke Depth At 120mm: 33.2
• Spoke Depth At 160mm: 50.7
• Inner Wheel Radius At 50mm: 241.6
• Inner Wheel Radius: 246.3
• Cap Bore mm: 125 mm
• Cap Clearance Height mm First Obstruction: 102
• Cap Clearance Height mm End Of Cap: 102
• Lip Size mm: 20 mm
• Lip Size Inch: 0.79 Inch
• CBM: 0.1040819
