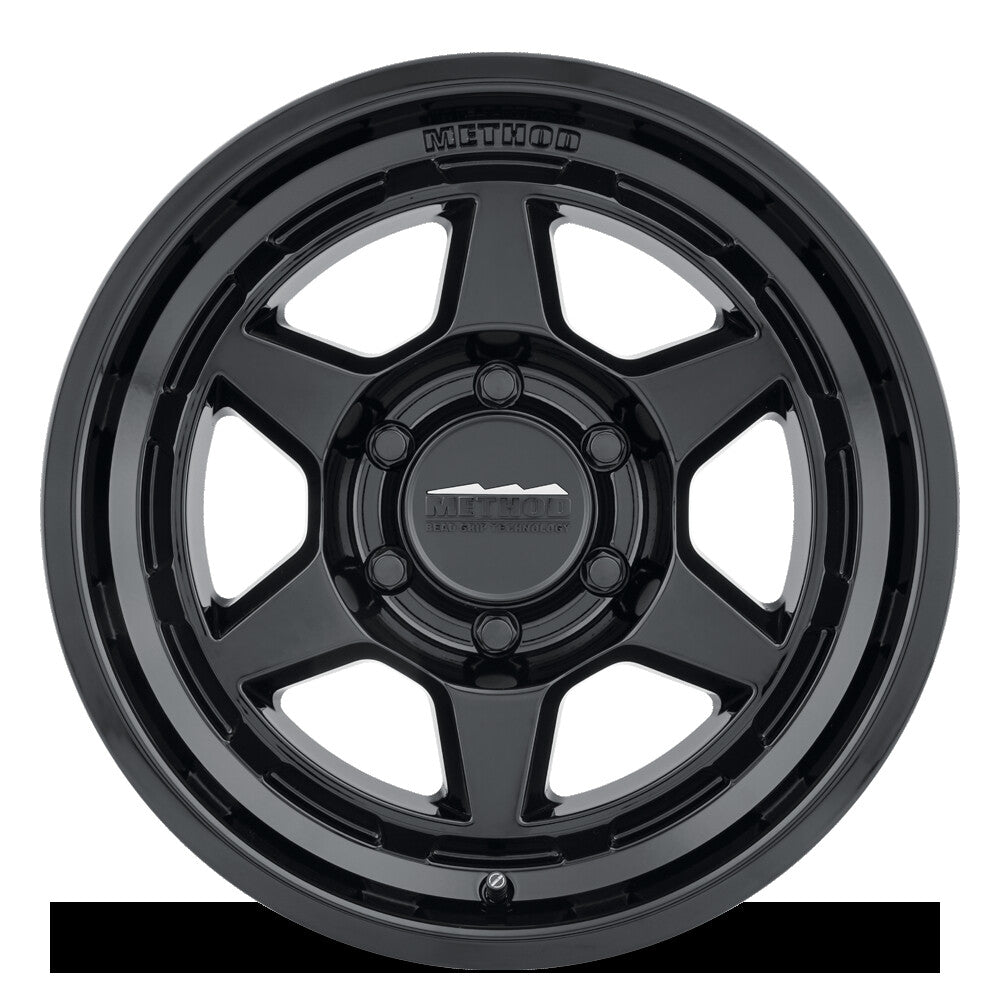

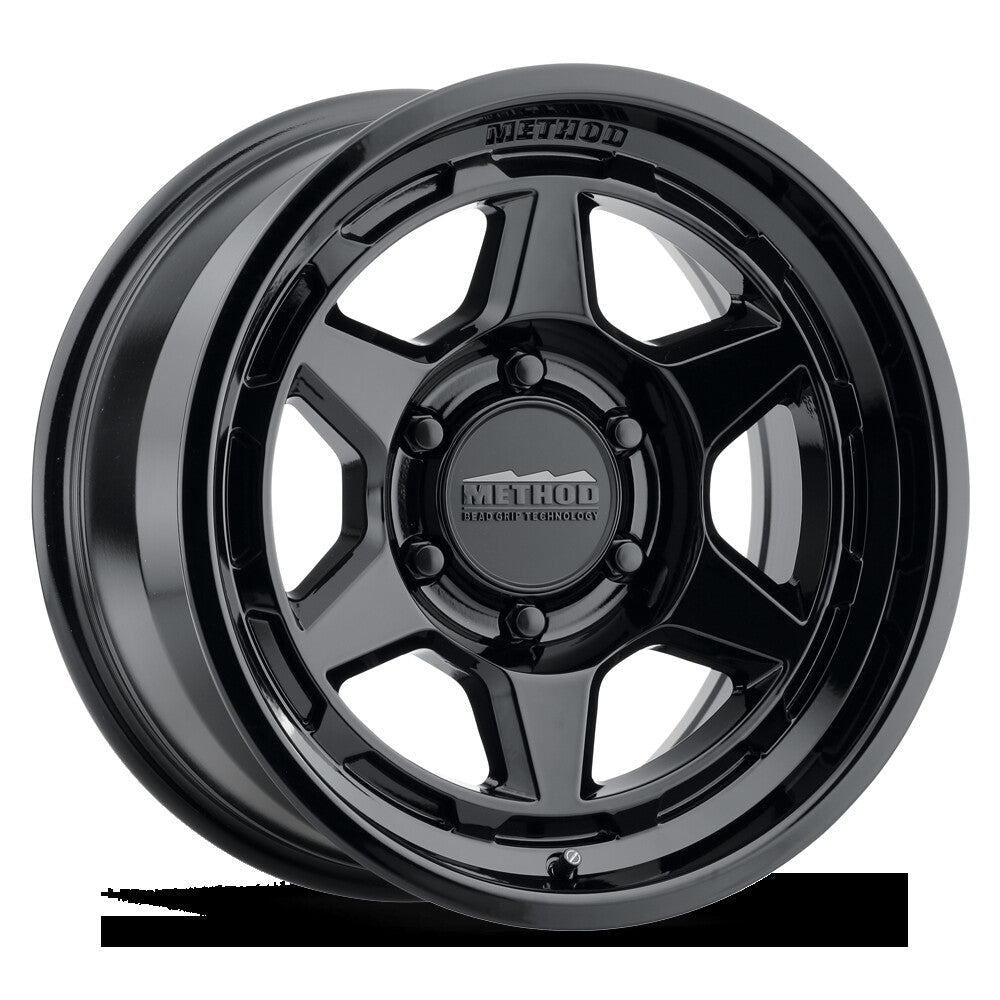

MR708 Bead Grip, 17x8.5, +25mm Offset, 6x5.5, 106.25mm Centerbore, Gloss Black, Method Race Wheels

Method Race Wheel's 708 features a fresh, updated take on the classic six spoke design. Featuring Method's patented Bead Grip Technology, this wheel's classic styling is designed to tackle any trail.

The 708 has large, chamfered edges, a six window design, and is paired with a Method Bead Grip center cap. Patented Bead Grip Technology integrates grooves, found on both the inner and outer bead seat, to engage the tire bead for a stronger hold under extreme side load and lower air pressures.

Features and Benefits:

• Patented Bead Grip technology engages tire bead for increased grip at low tire pressures
• Solid A356 aluminum with T6 heat treatment construction
• Rugged six spoke design with debossed Method logo
• Aggressive safety hump on bead seats further prevents debeading
• Reinforced inner lip taken from Mrw race wheel increases strength
• Snap-in center cap with embossed Method Bead Grip logo.
• Push through center cap with embossed Method Bead Grip logo for 8 lug applications
• Hub centric fitments for common applications
• Industry’s best lifetime structural warranty
• Strong 2650 lbs. to 3640 lbs. load ratings

Details:

• Series: TRAIL (7XX)
• Model: MR708 Bead Grip
• Wheel Diameter Inch: 17 Inch
• Wheel Width Inch: 8.5 Inch
• Bolt Pattern: 6x5.5
• Bolt Hole: 6
• Bolt Diameter: 5.5
• Offset mm: 25 mm
• Backside Spacing Inch: 5.7 Inch
• Hub Bore mm: 106.25 mm
• Wheel Weight LBS: 30.578 LBS
• Max Load LBS: 2650 LBS
• Color/Finish: Gloss Black
• Application: 17x8.5, 6x5.5, 25 OS, 2650 lbs
• Cap Part: CP-T080K107
• Cap Type: Snap In
• Hub Centric Yes/No: Yes
• Hub Centric Ring PN: MH-ZH-126-P
• Hub Ring Bore mm: 95.25 mm
• Lug Hole Diameter mm: 16.2 mm
• Lug Taper Angle: 60
• Mount Pad Diameter mm: 170 mm
• Spoke Depth At 90mm: 6.4
• Spoke Depth At 100mm: 19.2
• Spoke Depth At 120mm: 30.9
• Spoke Depth At 160mm: 34.5
• Inner Wheel Radius At 50mm: 210
• Inner Wheel Radius: 200
• Cap Bore mm: 82.61 mm
• Cap Clearance Height mm First Obstruction: 32.3
• Cap Clearance Height mm End Of Cap: 40.49
• Lip Size mm: 43 mm
• Lip Size Inch: 1.69 Inch
• CBM: 0.0766168399999998
