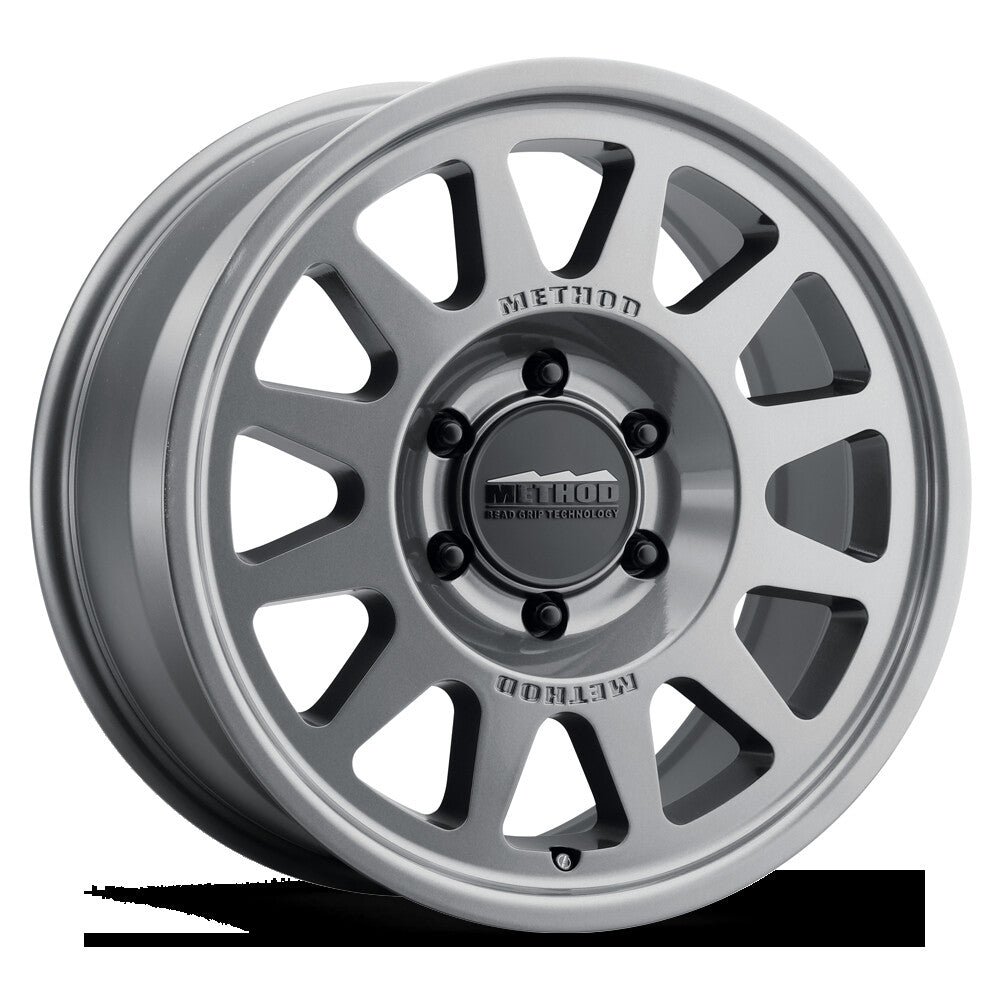

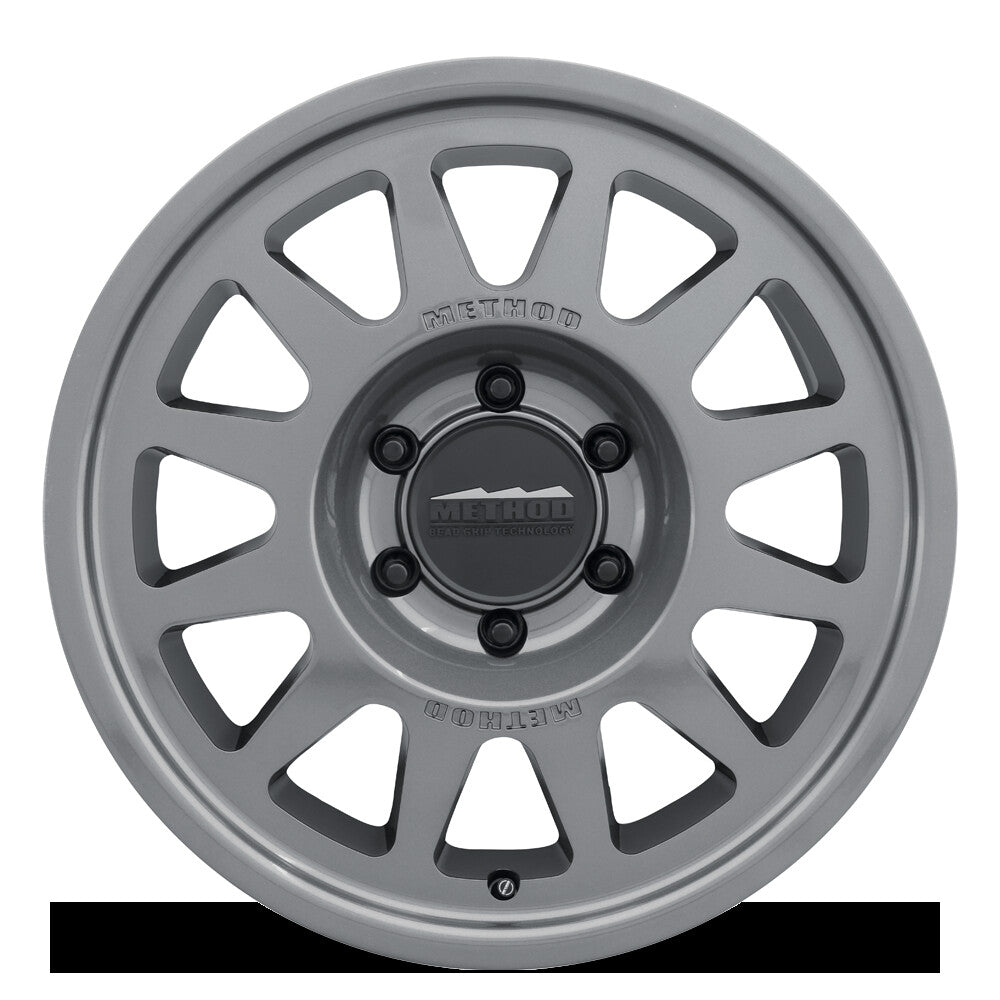

MR703 Bead Grip HD, 18x9, +40mm Offset, 6x5.5, 95.25mm Centerbore, Gloss Titanium, Method Race Wheels

The 703 HD Bead Grip wheel brings the strength of Heavy Duty load ratings to select fitments of the popular 703 Bead Grip wheel lineup. Available in multiple colorways to match your style.

Features and Benefits:

• Patented Bead Grip technology engages tire bead for increased grip at low tire pressures
• Solid A356 aluminum with T6 heat treatment construction
• Iconic 12 window design with debossed Method logos
• Aggressive safety hump on bead seats further prevents de-beading
• Reinforced inner lip taken from Mrw race wheel increases strength
• Snap-in center cap with embossed Method Bead Grip logo
• Push through center cap with embossed Method Bead Grip logo for 8 lug applications
• Hub centric fitments for common applications
• Industry’s best lifetime structural warranty

Details:

• Series: TRAIL (7XX)
• Model: MR703 Bead Grip HD
• Wheel Diameter Inch: 18 Inch
• Wheel Width Inch: 9 Inch
• Bolt Pattern: 6x5.5
• Bolt Hole: 6
• Bolt Diameter: 5.5
• Offset mm: 40 mm
• Backside Spacing Inch: 6.62 Inch
• Hub Bore mm: 95.25 mm
• Wheel Weight LBS: 36.0455798672275 LBS
• Max Load LBS: 3640 LBS
• Color/Finish: Gloss Titanium
• Application: 18x9, 6x5.5, 40 OS, 3640 lbs
• Cap Part: CP-T080K107
• Cap Type: Snap In
• Hub Centric Yes/No: Yes
• Lug Hole Diameter mm: 16.2 mm
• Lug Taper Angle: 60
• Mount Pad Diameter mm: 175 mm
• Spoke Depth At 90mm: 3.48
• Spoke Depth At 100mm: 17.76
• Spoke Depth At 120mm: 34.32
• Spoke Depth At 160mm: 39.21
• Inner Wheel Radius At 50mm: 224.62
• Inner Wheel Radius: 211.67
• Cap Bore mm: 95.25 mm
• Cap Clearance Height mm First Obstruction: 40
• Cap Clearance Height mm End Of Cap: 40
• Lip Size mm: 14 mm
• Lip Size Inch: 0.55 Inch
• CBM: 0.0873758070000002
