Product details

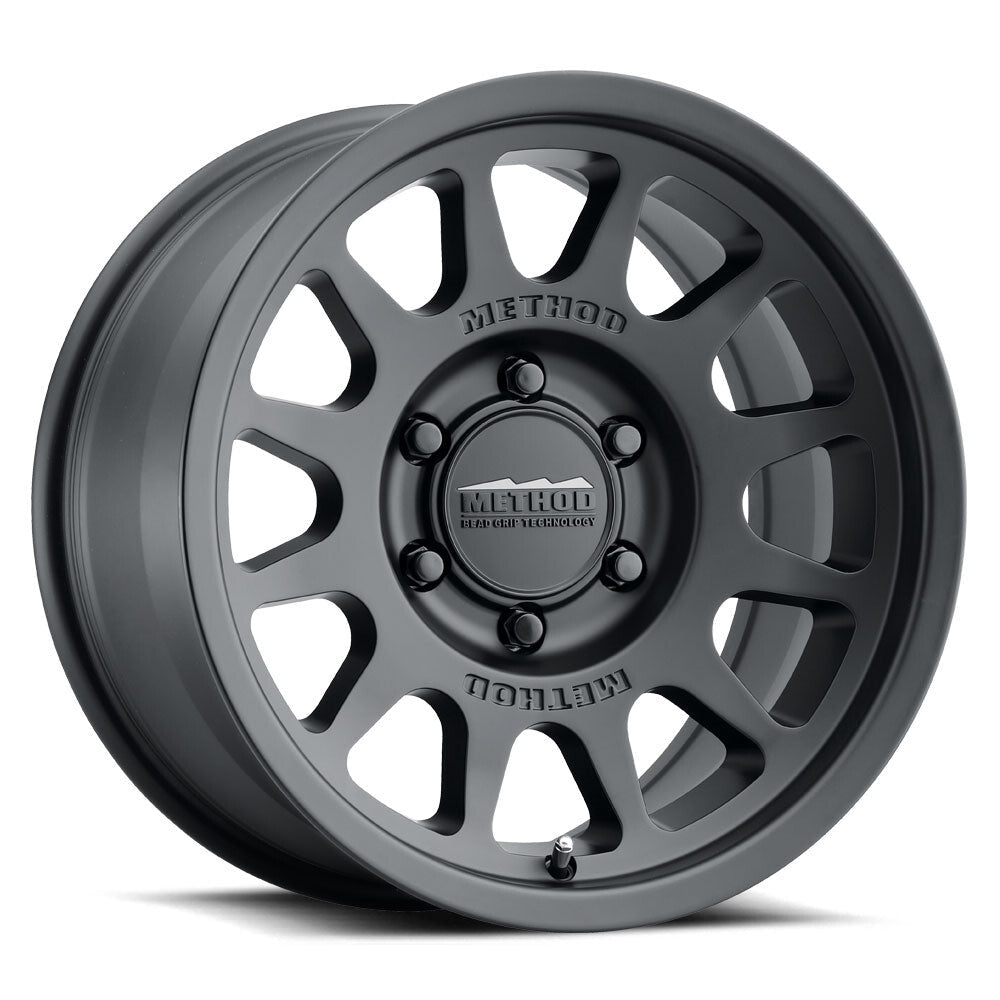

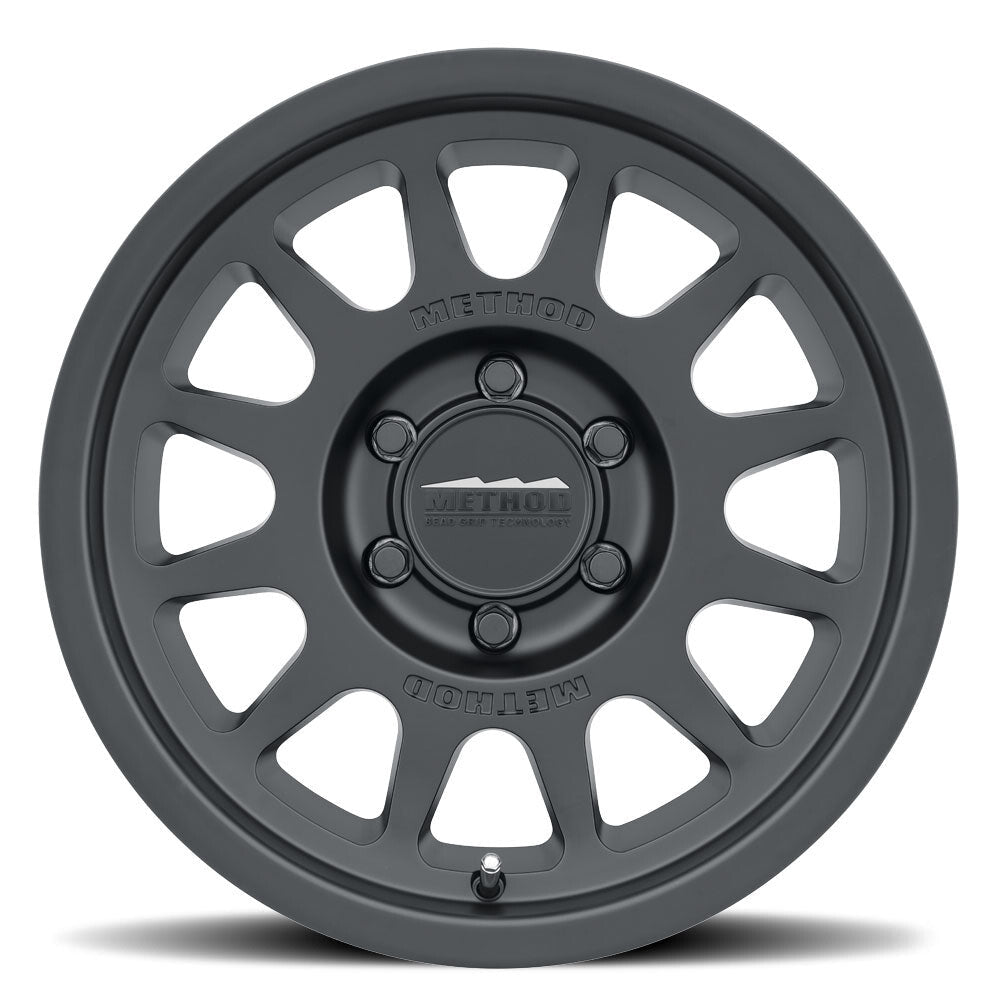

The 703 Bead Grip wheel was developed for off-road enthusiasts and designed to handle the toughest trails and your next overland adventure. An iconic 12 window design and dual debossed Method logos help set your ride apart from the rest.
Our patented Bead Grip Technology engages the tire bead for a stronger hold under extreme side load and lower air pressures.
Features and Benefits:
- Patented Bead Grip technology engages tire bead for increased grip at low tire pressures
- Solid A356 aluminum with T6 heat treatment construction
- Iconic 12 window design with debossed Method logos
- Aggressive safety hump on bead seats further prevents de-beading
- Reinforced inner lip taken from Mrw race wheel increases strength
- Snap-in center cap with embossed Method Bead Grip logo
- Push through center cap with embossed Method Bead Grip logo for 8 lug applications
- Hub centric fitments for common applications
- Industry’s best lifetime structural warranty
Details:
- Series: TRAIL (7XX)
- Model: MR703 Bead Grip
- Wheel Diameter Inch: 20 Inch
- Wheel Width Inch: 9 Inch
- Bolt Pattern: 8x170
- Bolt Hole: 8
- Bolt Diameter: 170
- Offset mm: 12 mm
- Backside Spacing Inch: 5.5 Inch
- Hub Bore mm: 130.81 mm
- Wheel Weight LBS: 38.3604336201687 LBS
- Max Load LBS: 3640 LBS
- Color/Finish: Matte Black
- Application: 20x9, 8x170, 12 OS, 3640 lbs
- Cap Part: CP-T080B140
- Cap Type: Push Thru
- Replacement Cap O-Ring: OR-049
- Hub Centric Yes/No: No
- Lug Hole Diameter mm: 16.2 mm
- Lug Taper Angle: 60
- Mount Pad Diameter mm: 200 mm
- Spoke Depth At 90mm: 0
- Spoke Depth At 100mm: 0
- Spoke Depth At 120mm: 30.3
- Spoke Depth At 160mm: 42.6
- Inner Wheel Radius At 50mm: 246.8
- Inner Wheel Radius: 239.4
- Cap Bore mm: 128.3 mm
- Cap Clearance Height mm First Obstruction: 106.66
- Cap Clearance Height mm End Of Cap: 106.66
- Lip Size mm: 13 mm
- Lip Size Inch: 0.51 Inch
- CBM: 0.1040819
