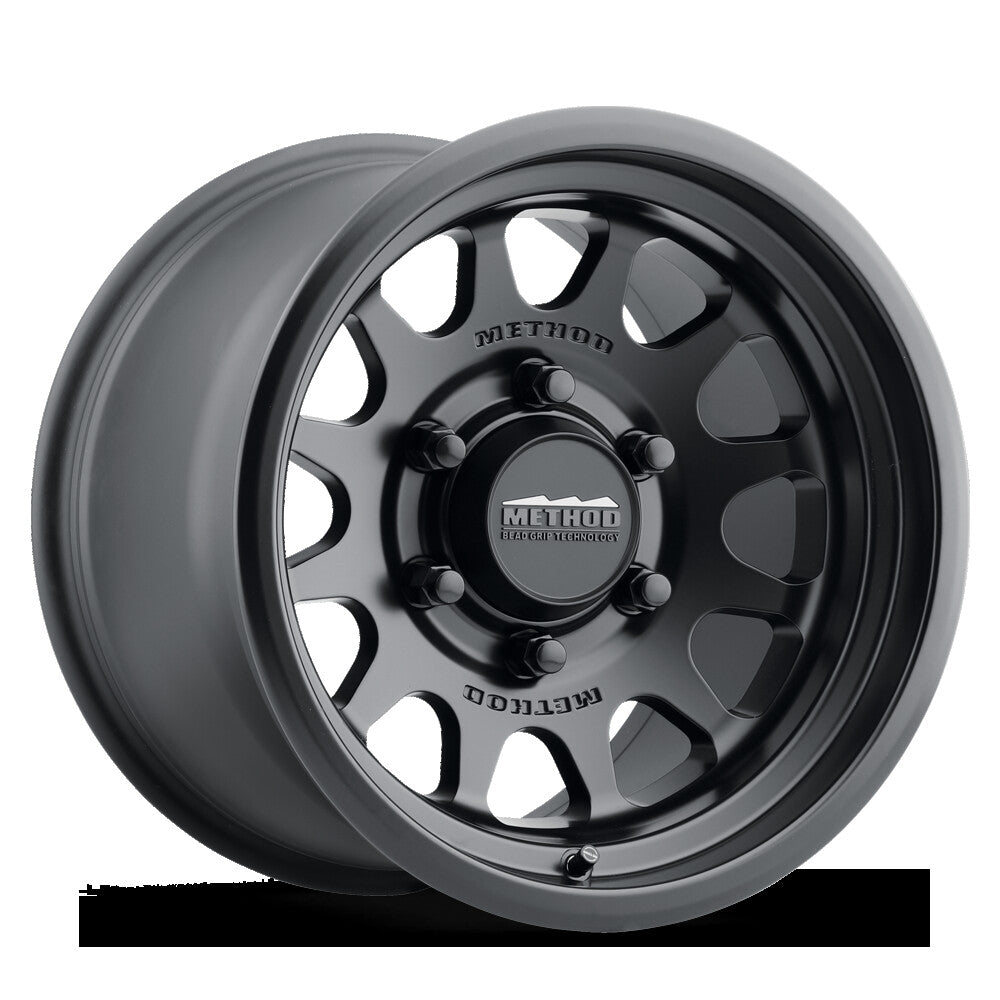

MR414 Bead Grip, 15x10, 6+4/+25mm Offset, 6x5.5, 78.3mm Centerbore, Matte Black, Method Race Wheels

The 414 UTV Bead Grip wheel draws inspiration from the classic 401 UTV and adds our patented Bead Grip technology for strength and confidence in all types of riding.

Available in numerous offsets and sizes for options from trail riding to sand dunes.

Features and Benefits:

• Patented Bead Grip technology engages tire bead for increased grip at low tire pressures
• Solid A356 aluminum with T6 heat treatment construction
• Iconic 12 window design with debossed Method logos
• Aggressive safety hump on bead seats further prevents de-beading
• Reinforced inner lip taken from Mrw race wheel increases strength
• Snap-in center cap with embossed Method Bead Grip logo
• Super strong 1600 lbs. load rating

Details:

• Series: UTV (4XX)
• Model: MR414 Bead Grip
• Wheel Diameter Inch: 15 Inch
• Wheel Width Inch: 10 Inch
• Bolt Pattern: 6x5.5
• Bolt Hole: 6
• Bolt Diameter: 5.5
• Offset mm: 25 mm
• Backside Spacing Inch: 6.25 Inch
• ATV Offset B+F: 6+4
• Hub Bore mm: 78.3 mm
• Wheel Weight LBS: 17.9309306577034 LBS
• Max Load LBS: 1600 LBS
• Color/Finish: Matte Black
• Application: 15x10, 6x5.5, 25 OS, 1600 lbs
• Cap Part: CP-T080K104
• Cap Type: Snap In
• Hub Centric Yes/No: No
• Lug Hole Diameter mm: 14.1 mm
• Lug Taper Angle: 60
• Mount Pad Diameter mm: 180 mm
• Spoke Depth At 90mm: 0
• Spoke Depth At 100mm: 8.5
• Spoke Depth At 120mm: 13
• Spoke Depth At 160mm: 16.9
• Inner Wheel Radius At 50mm: 180
• Inner Wheel Radius: 176.8
• Cap Bore mm: 78.3 mm
• Cap Clearance Height mm First Obstruction: 49
• Cap Clearance Height mm End Of Cap: 49
• Lip Size mm: 69 mm
• Lip Size Inch: 2.72 Inch
• CBM: 0.0676060480000003
