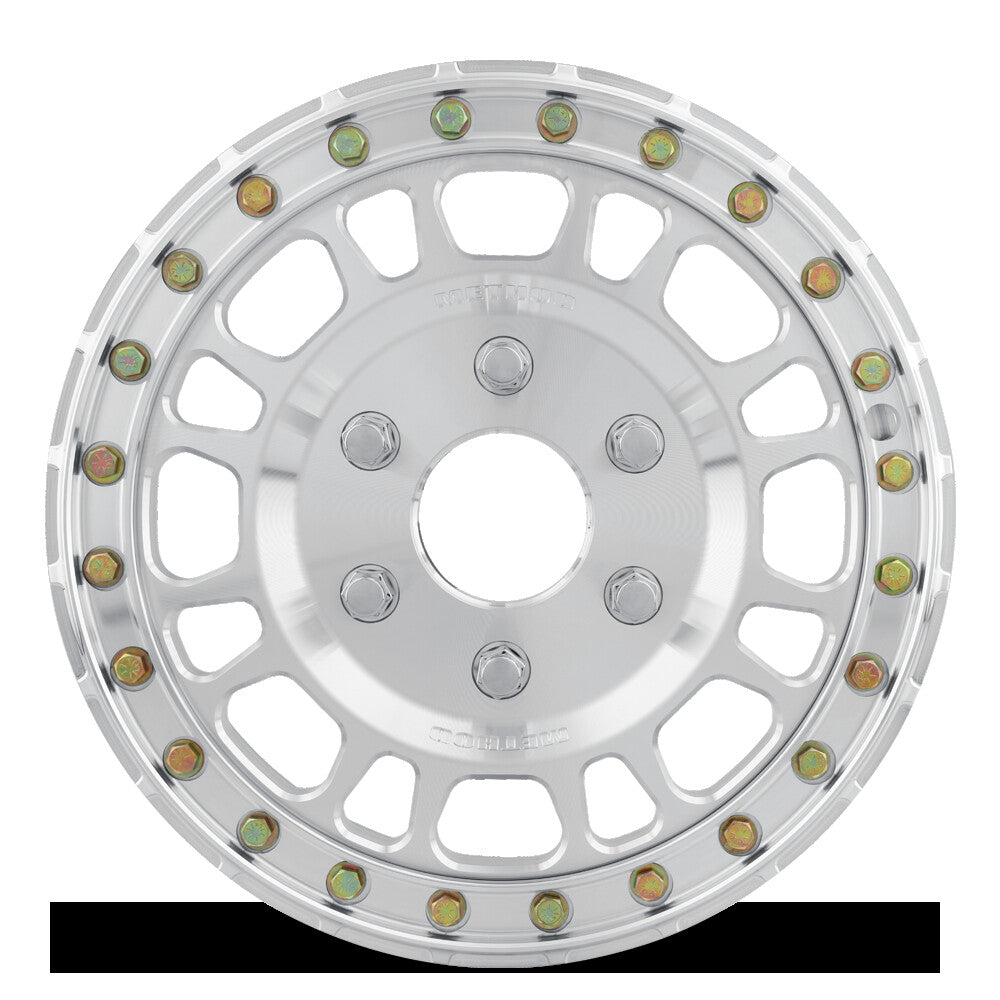

MR412 Beadlock, 15x5, 4.2+.8/+43mm Offset, 6x5.5, 78.3mm Centerbore, Machined Raw, w/ BH-H24155, Method Race Wheels

Introducing the ultimate UTV wheel, featuring premium materials and technology for the highest level of performance. Lightweight construction and superior strength allow you to get the most out of your UTV in demanding off-road environments.

Forged 6061 construction with T6 heat treatment provides the highest strength and lowest weight for high performance applications. Maximum tire security comes with a true Beadlock outer ring and Bead Grip bead seats on the inner lip for unmatched confidence at low tire pressures.

Features and Benefits:

• Forged 6061 aluminum with T6 heat treatment construction
• Tough multi-spoke design with debossed Method logos
• Reinforced inner lip provides extreme strength and durabilit
• Forged 6061 aluminum V.7 beadlock ring
• Excess material removed from ring for additional weight reduction
• Grade 8 zinc placed beadlock hardware kit included
• Super strong 1600 lbs. load rating
• Patented Bead Grip bead seats on inner lip

Details:

• Series: UTV (4XX)
• Model: MR412 Beadlock
• Wheel Diameter Inch: 15 Inch
• Wheel Width Inch: 5 Inch
• Bolt Pattern: 6x5.5
• Bolt Hole: 6
• Bolt Diameter: 5.5
• Offset mm: 43 mm
• Backside Spacing Inch: 4.7 Inch
• ATV Offset B+F: 4.2+.8
• Hub Bore mm: 78.3 mm
• Wheel Weight LBS: 16.0937451394961 LBS
• Max Load LBS: 1600 LBS
• Color/Finish: Machined - Raw
• Application: 15x5, 6x5.5, 43 OS, 1600 lbs
• Cap Type: None
• Hub Centric Yes/No: No
• Lug Hole Diameter mm: 14.1 mm
• Lug Taper Angle: 60
• Mount Pad Diameter mm: 186 mm
• Spoke Depth At 90mm: 0
• Spoke Depth At 100mm: 5
• Spoke Depth At 120mm: 11.8
• Spoke Depth At 160mm: 6.7
• Inner Wheel Radius At 50mm: 176
• Inner Wheel Radius: 167
• Lip Size mm: 0 mm
• Lip Size Inch: 0 Inch
• CBM: 0.04328436
