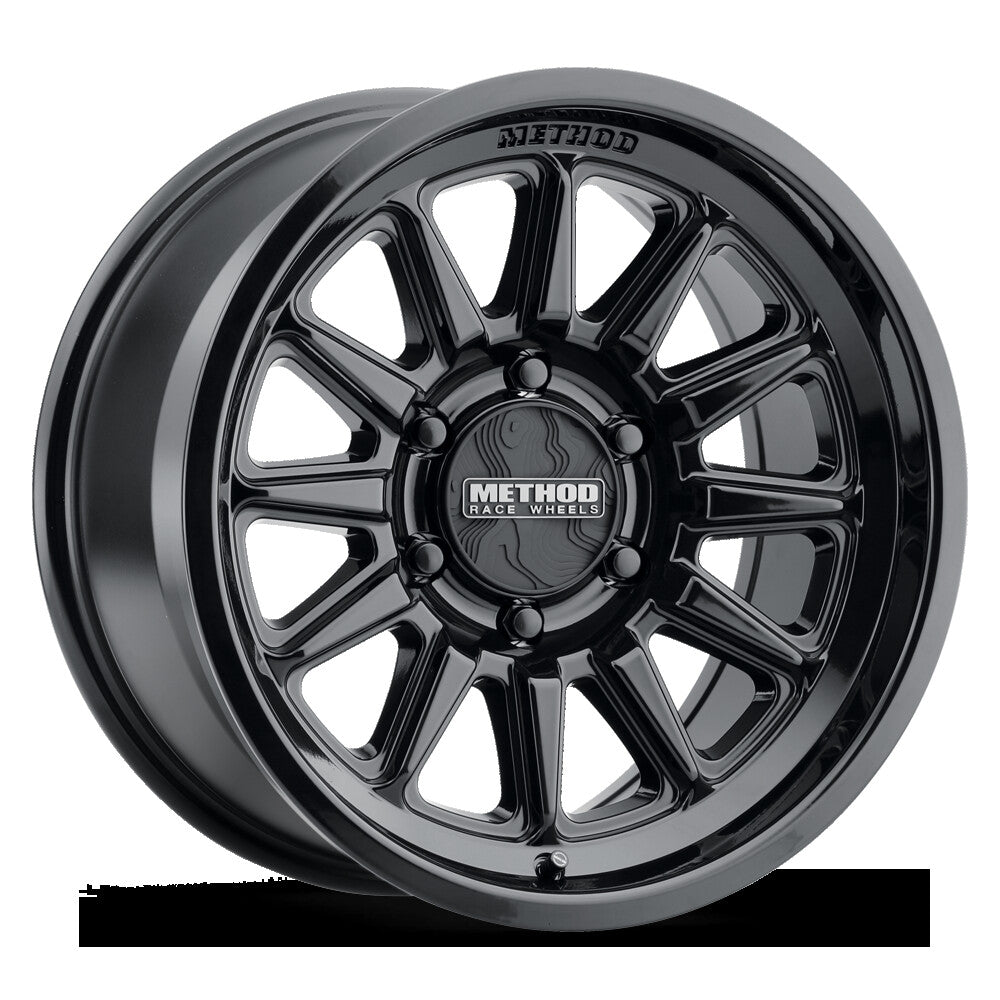

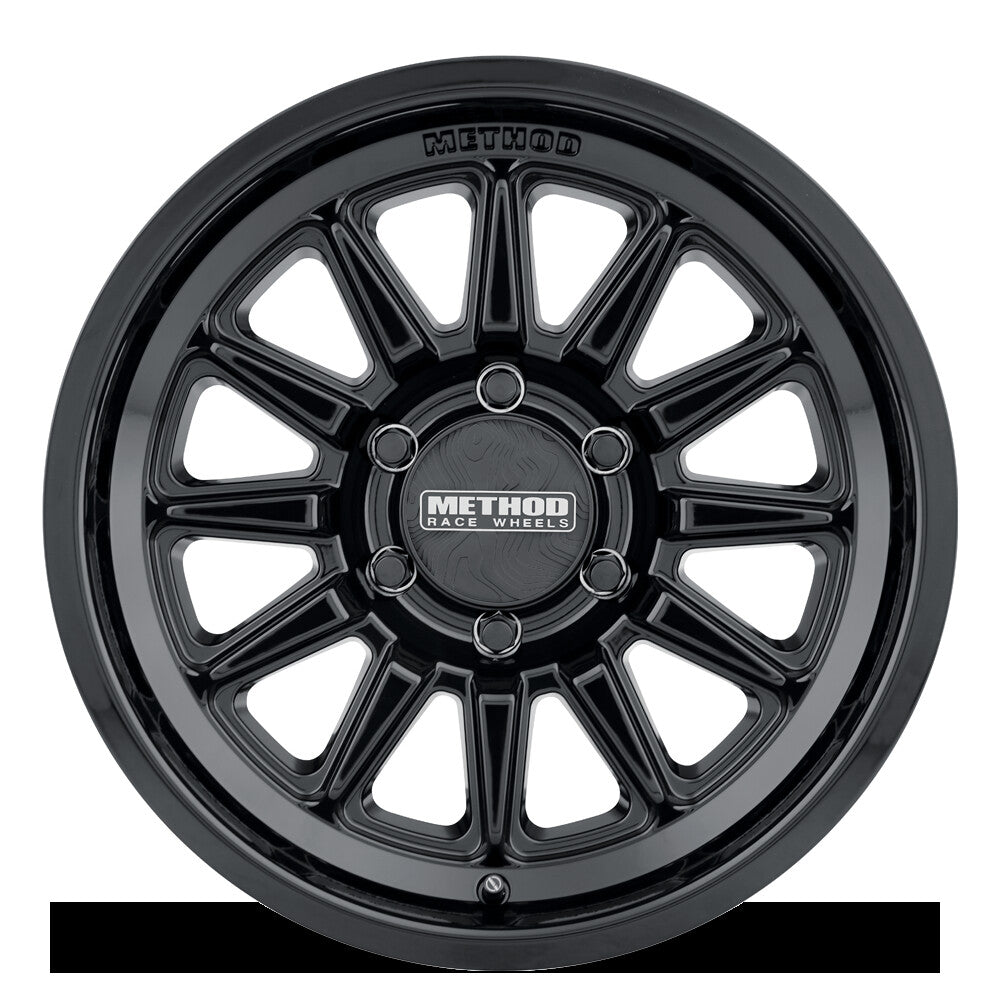

MR323, 17x8.5, 0mm Offset, 6x5.5, 106.25mm Centerbore, Gloss Black, Method Race Wheels

Designed to leave a lasting impression, introducing Method Race Wheel's 323 Standard. Engineered with a fresh face lift to the iconic 12 window design, this wheel is a statement of classic Method style and functionality.

Also available in Gloss Method Bronze and includes the popular Method Topo center cap.

Features and Benefits:

• Solid A356 aluminum with T6 heat treatment construction
• Iconic 12 window spoke design with debossed Method logo
• Snap-in Topo center cap with embossed Method logo
• Push through Topo center cap with embossed Method logo for 8 lug applications
• Hub centric fitments for common applications
• Industry’s best lifetime structural warranty
• Strong 2650 lbs. to 3640 lbs. load ratings

Details:

• Series: STREET (3XX)
• Model: MR323
• Wheel Diameter Inch: 17 Inch
• Wheel Width Inch: 8.5 Inch
• Bolt Pattern: 6x5.5
• Bolt Hole: 6
• Bolt Diameter: 5.5
• Offset mm: 0 mm
• Backside Spacing Inch: 4.72 Inch
• Hub Bore mm: 106.25 mm
• Wheel Weight LBS: 27.1 LBS
• Max Load LBS: 2650 LBS
• Color/Finish: Gloss Black
• Application: 17x8.5, 6x5.5, 0 OS, 2650 lbs
• Cap Part: CP-TOPO107S-B
• Cap Type: Snap In
• Hub Centric Yes/No: Yes
• Hub Centric Ring PN: MH-ZH-043
• Hub Ring Bore mm: 78.3 mm
• Lug Hole Diameter mm: 16.2 mm
• Lug Taper Angle: 60
• Mount Pad Diameter mm: 175 mm
• Spoke Depth At 90mm: 5.4
• Spoke Depth At 100mm: 25.9
• Spoke Depth At 120mm: 41.8
• Spoke Depth At 160mm: 51.8
• Inner Wheel Radius At 50mm: 210.2
• Inner Wheel Radius: 206.4
• Cap Bore mm: 103.35 mm
• Cap Clearance Height mm First Obstruction: 32
• Cap Clearance Height mm End Of Cap: 40
• Lip Size mm: 32 mm
• Lip Size Inch: 1.26 Inch
• CBM: 0.0766168399999998
