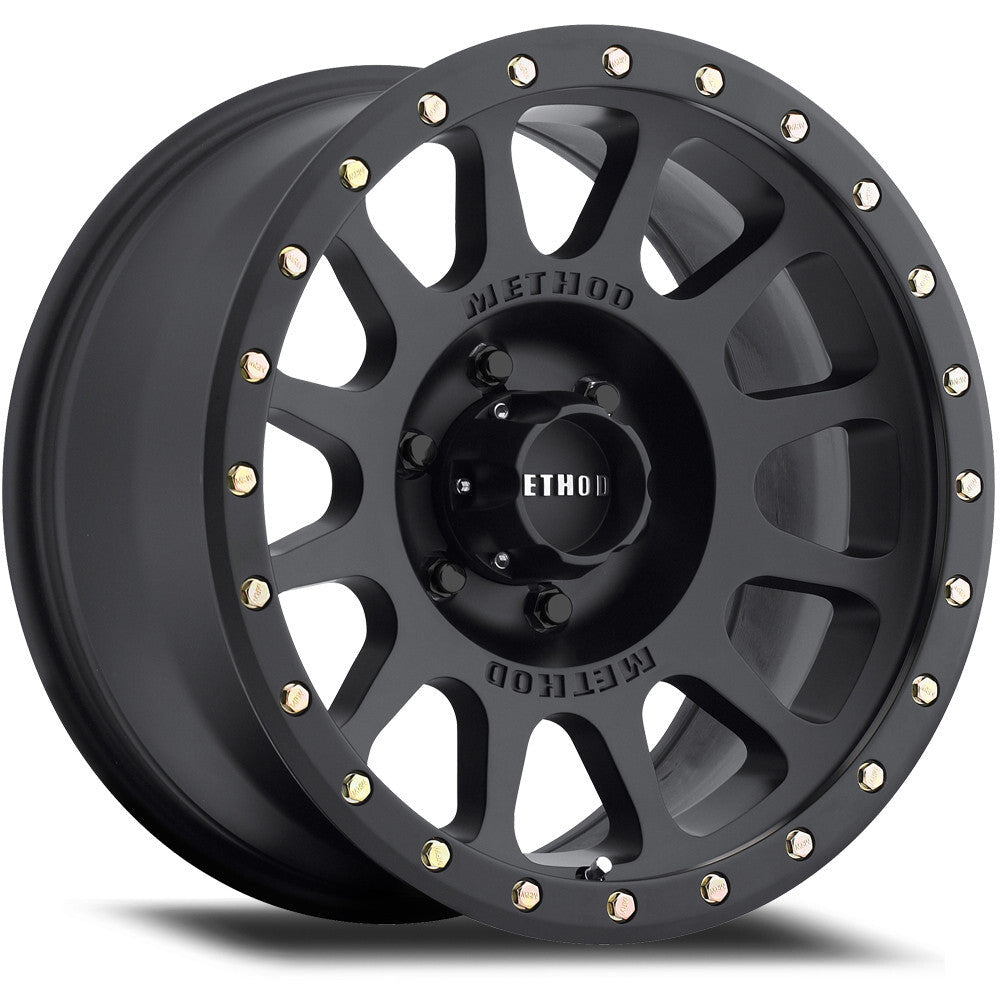

MR305 NV HD, 16x7, 0mm Offset, 6x5.5, 108.3mm Centerbore, Matte Black, Method Race Wheels

The 305 HD NV wheel features an iconic 12 window design with a debossed Method logo on either side of the center cap. The lip undercut simulates a true beadlock wheel and has replaceable lip bolts with optional colors available.

It boasts a Heavy Duty load rating of 4,500 LBS to handle your larger hauls.

Features and Benefits:

• Solid A356 aluminum with T6 heat treatment construction
• Iconic 12 window design with debossed Method logos
• Street-Loc V.1 lip with undercut simulates true beadlock wheel
• Replaceable Mrw lip bolts with optional colors available
• Push through center cap with embossed Method logo
• Flush cap appearance options available
• Industry’s best lifetime structural warranty

Details:

• Series: STREET (3XX)
• Model: MR305 NV HD
• Wheel Diameter Inch: 16 Inch
• Wheel Width Inch: 7 Inch
• Bolt Pattern: 6x5.5
• Bolt Hole: 6
• Bolt Diameter: 5.5
• Offset mm: 0 mm
• Backside Spacing Inch: 3.98 Inch
• Hub Bore mm: 108.3 mm
• Wheel Weight LBS: 24.6697271384878 LBS
• Max Load LBS: 3640 LBS
• Color/Finish: Matte Black
• Application: 16x7, 6x5.5, 0 OS, 3640 lbs
• Cap Part: CP-1717B114-82
• Cap Type: Push Thru
• Replacement Cap O-Ring: OR-044
• Accessory Bolt PN: BT-BOLT ZINC
• Hub Centric Yes/No: No
• Lug Hole Diameter mm: 16.2 mm
• Lug Taper Angle: 60
• Mount Pad Diameter mm: 178 mm
• Spoke Depth At 90mm: 3
• Spoke Depth At 100mm: 25
• Spoke Depth At 120mm: 40
• Spoke Depth At 160mm: 48
• Inner Wheel Radius At 50mm: 195
• Inner Wheel Radius: 188
• Cap Bore mm: 106.8 mm
• Lip Size mm: 17 mm
• Lip Size Inch: 0.67 Inch
• CBM: 0.0611523235645276
