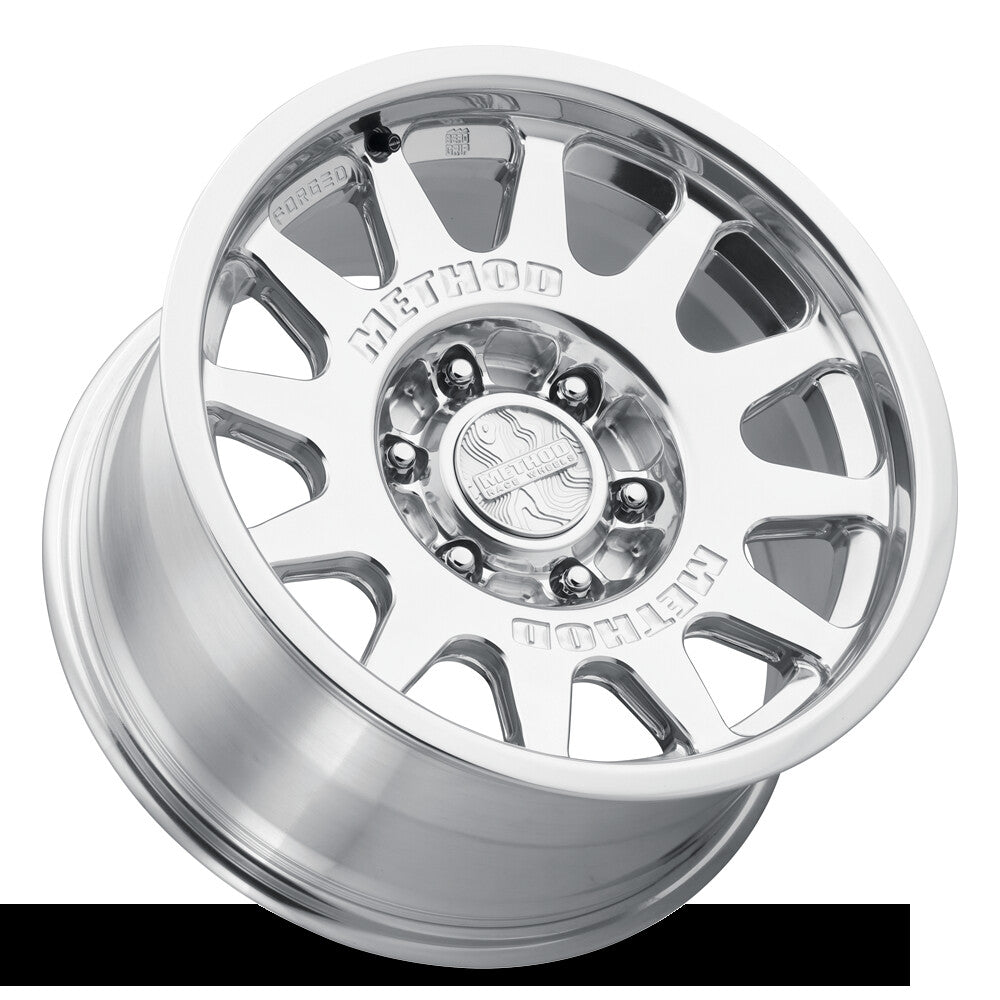

MR203 Forged, 17x8.5, 0mm Offset, 6x135, 87mm Centerbore, Polished Clear Coat, Method Race Wheels

Combining the strength of forged aluminum and Method's patented Bead Grip technology, the 203 Forged Bead Grip is the premium wheel for your truck.

Available in Polished and Clearcoat, and includes an all new billet Method Topo center cap.

Details:

• Series: FORGED (2XX)
• Model: MR203 Forged
• Wheel Diameter Inch: 17 Inch
• Wheel Width Inch: 8.5 Inch
• Bolt Pattern: 6x135
• Bolt Hole: 6
• Bolt Diameter: 135
• Offset mm: 0 mm
• Backside Spacing Inch: 4.75 Inch
• Hub Bore mm: 87 mm
• Wheel Weight LBS: 30.29 LBS
• Max Load LBS: 3600 LBS
• Color/Finish: Polished - Clear Coat
• Application: 17x8.5, 6x135, 0 OS
• Cap Part: CP-TOPO84S-AL
• Cap Type: Snap In
• Hub Centric Yes/No: No
• Lug Hole Diameter mm: 16.2 mm
• Lug Taper Angle: 60
• Mount Pad Diameter mm: 170 mm
• Spoke Depth At 90mm: 5.8
• Spoke Depth At 100mm: 23.8
• Spoke Depth At 120mm: 37.1
• Spoke Depth At 160mm: 47.8
• Inner Wheel Radius At 50mm: 209
• Inner Wheel Radius: 208
• Cap Bore mm: 64.15 mm
• Cap Clearance Height mm First Obstruction: 35.9
• Cap Clearance Height mm End Of Cap: 42
• Lip Size mm: 33 mm
• Lip Size Inch: 1.3 Inch
• CBM: 0.0766168399999998
