MR108, 17x9, -44mm Offset, 8x170, 130.81mm Centerbore, Matte Black, w/ BH-H24125-38, Method Race Wheels

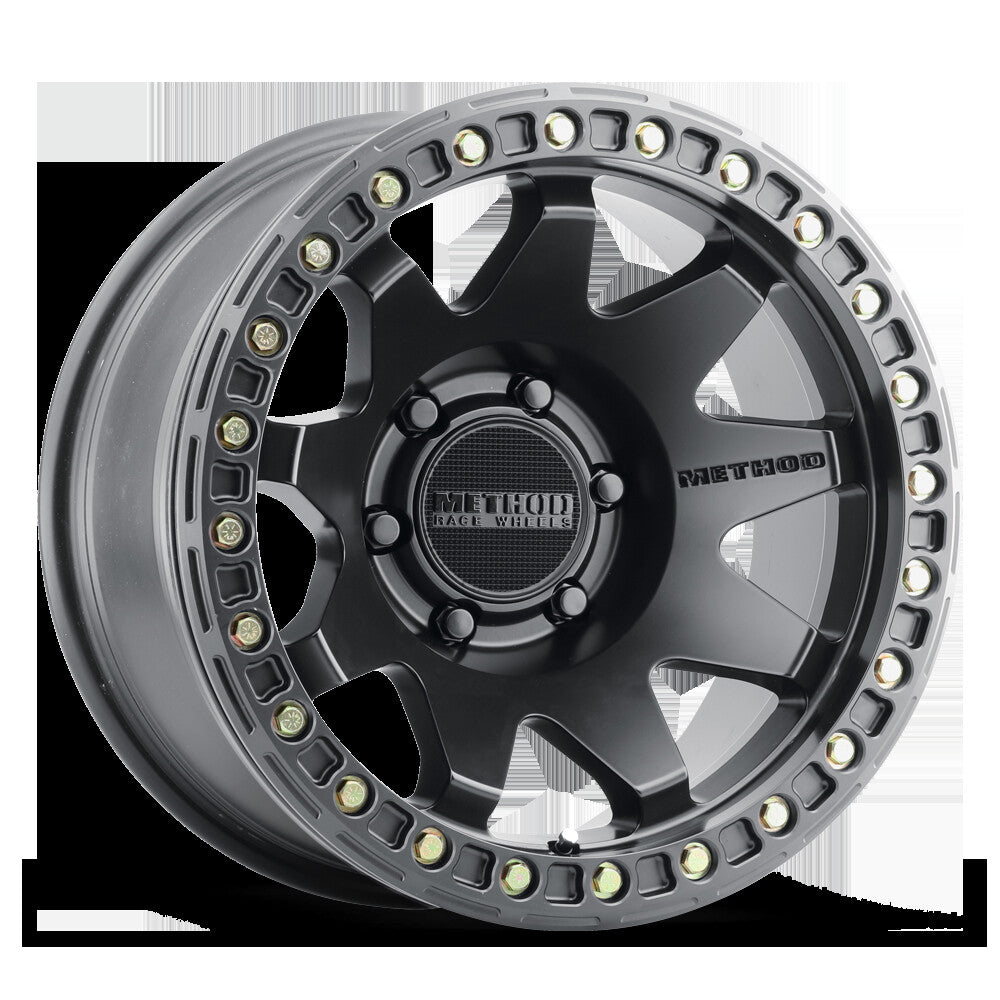

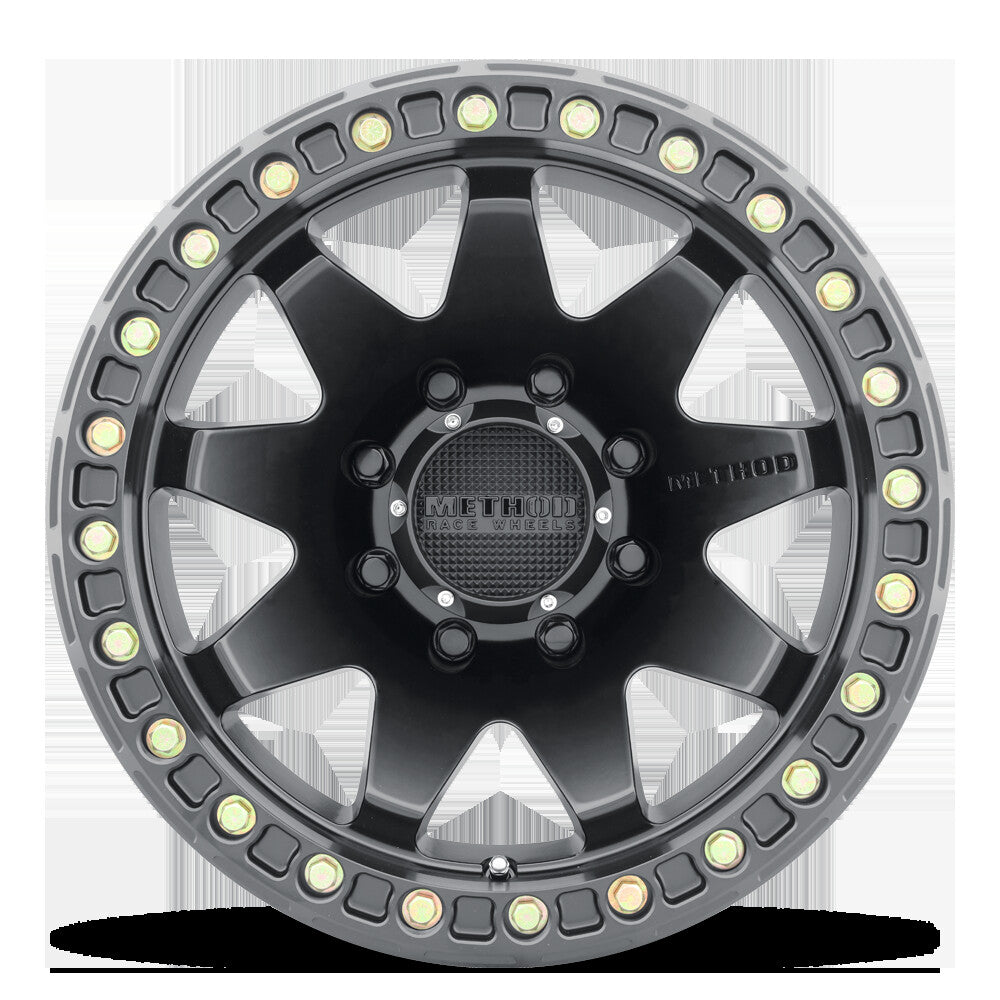

The 108 Beadlock wheel boasts a rugged 9 spoke design with a debossed Method logo on the spoke. It's our first wheel to feature both Beadlock and our patented Bead Grip technology.

The added bead seat on the inner lip creates unmatched tire security. With extra material added to high stress areas and featuring 3/8 Inch beadlock hardware, the wheel is able to achieve a 4,000 LBS load rating.

Features and Benefits:

• Solid A356 aluminum with T6 heat treatment construction
• Tough 9 spoke design with debossed Method logo on spoke
• Forged 6061 aluminum V5 beadlock ring
• Patented Bead Grip bead seats on inner lip
• 3/8” Grade 8 zinc-plated beadlock hardware kit included
• Redundant sets of threaded beadlock hardware holes machined into wheel
• Snap-on center cap with embossed Method logo
• Push through cap with embossed Method logo for 8 lug applications
• Hub centric fitments for common applications
• 4,000lb load rating tested for use on tires up to 40 Inch in size

Details:

• Series: RACE (1XX)
• Model: MR108
• Wheel Diameter Inch: 17 Inch
• Wheel Width Inch: 9 Inch
• Bolt Pattern: 8x170
• Bolt Hole: 8
• Bolt Diameter: 170
• Offset mm: -44 mm
• Backside Spacing Inch: 3.5 Inch
• Hub Bore mm: 130.81 mm
• Wheel Weight LBS: 38.58 LBS
• Max Load LBS: 4000 LBS
• Color/Finish: Matte Black
• Application: 17x9, 8x170, -44 OS, 4000 lbs
• Cap Part: CP-T078B140
• Cap Type: Push Thru
• Replacement Cap O-Ring: OR-049
• Hub Centric Yes/No: No
• Lug Hole Diameter mm: 16.2 mm
• Lug Taper Angle: 60
• Mount Pad Diameter mm: 200 mm
• Spoke Depth At 90mm: 3
• Spoke Depth At 100mm: 3
• Spoke Depth At 120mm: 55
• Spoke Depth At 160mm: 111
• Inner Wheel Radius At 50mm: 211
• Inner Wheel Radius: 206
• Cap Bore mm: 128 mm
• Cap Clearance Height mm First Obstruction: 103.9
• Cap Clearance Height mm End Of Cap: 107
• Lip Size mm: 16 mm
• Lip Size Inch: 0.63 Inch
• CBM: 0.0854464000000003
