Designed for maximum articulation, improved strength, and adjustability, these complete J-Krawl systems are available for next-level performance.
Components include J-Flex upper and lower control arms, Jspec dual-rate coil springs at each corner designed to level out the stance, and custom-valved FOX 2.0 monotube shocks all the way around to match your performance needs.
Also included is an adjustable front track bar, quicker disconnect front sway bar end links, rear sway bar links, and bump stop extensions. J-Krawl builds off Jeep's factory suspension mounting points and upgrades everything front to rear. Adjustability is important for fine-tuning suspension geometry. J-Krawl delivers. Dial-in front caster, rear pinion, and overall vehicle wheelbase.
The JKS Engineering team spent a lot of time dialing in the FOX shock valving and spring rates to suit J-Krawl's combination of parts as well as oversized wheels and tires. You'll be impressed with the stability and compression/rebound response.
Take your Jeep's off-road performance and strength to the next level. It should be noted that an aftermarket front driveshaft is strongly recommended due to potential additional travel.
Features & Benefits
- Fox 2.5 Performance Elite Series
- Front/rear dual-rate coil springs are designed to great ride quality across any terrain while lifting/leveling stance.
- Your choice of FOX 2.0 PS, 2.5 PES, or 3.0 FRS monotube shocks to improve damping.
- Front adjustable track bar to correct axle positioning under the vehicle.
- Front sway bar quicker disconnects and rear sway bar links for increased off-road articulation.
- Front/rear bump stop extensions to properly limit suspension up travel.
- Front/rear J-Flex upper control arms to add strength and adjustability.
- Front/rear J-Flex lower control arms to add strength and adjustability.
Creates leveled stance
Important Notes
- Diesel models may achieve up to 1 inch less lift height
- Kit does not work with the Mojave model

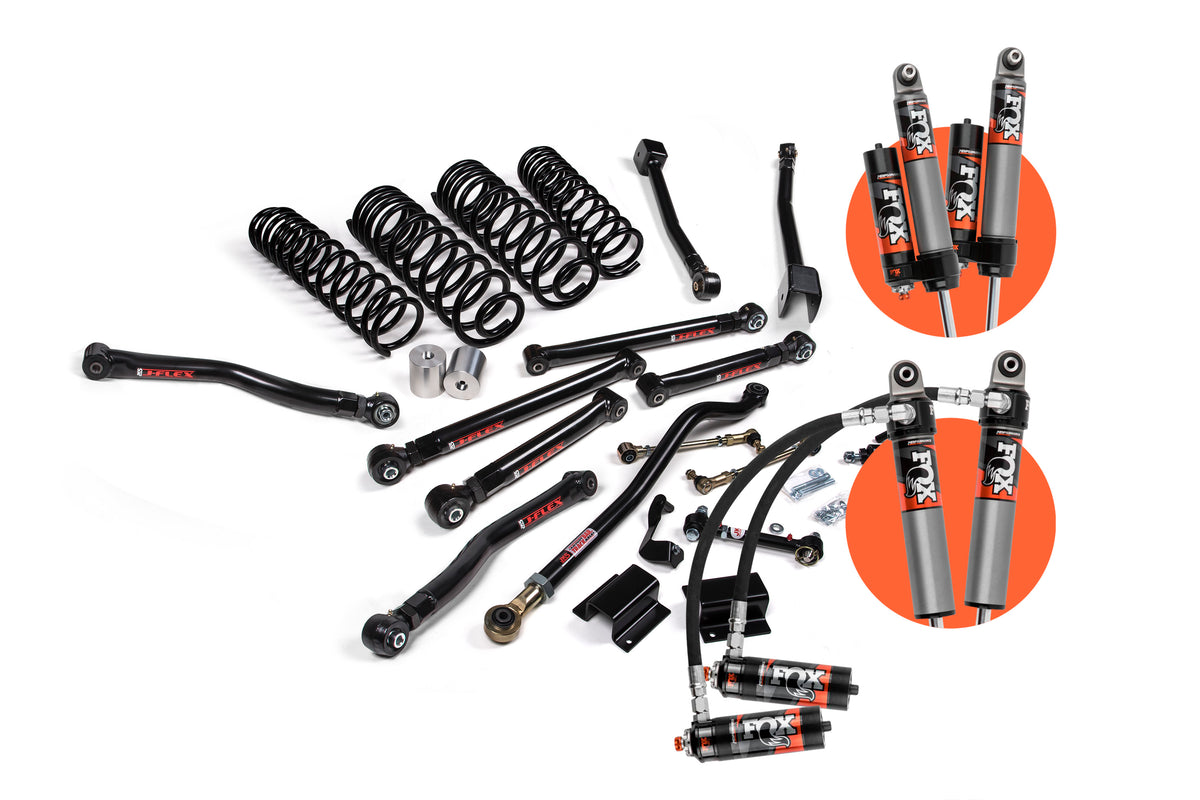

Kit Components
Includes one FOX88326051, Kit: 2018-2024 Jeep JL, Front, 2.5 Truck PES, R/R, 3.5-4 inch Lift, DSC, UPC Code 788000424339
Includes one FOX88326074, KIT: 2020-2024 Jeep Gladiator, Rear, 2.5 Truck PES, P/B, 2-3 inch Lift, DSC, UPC Code 711745590304
Includes one JKS1616, 2018-2024 Jeep Wrangler (JL) / 2020-2024 Jeep Gladiator (JT) Adjustable Front UCA, UPC Code 814897012547
Includes one JKS1625, 2018-2024 Jeep Wrangler (JL) / 2020-2024 Jeep Gladiator (JT) Front Lower J-Flex Control Arm Kit, UPC Code 814897012462
Includes one JKS1662, 2020-2024 Jeep Gladiator (JT) Rear Adjustable Lower Control Arm Kit, UPC Code 711745606425
Includes one JKS1667, 2020-2024 Jeep Gladiator (JT) Rear Adjustable Upper Control Arm Kit, UPC Code 711745606456
Includes one JSPEC1257, 2020-2023 Jeep Gladiator (JT) Rear 1.5 inch Coil Spr inchg Box Kit, UPC Code 814897012523
Includes one JSPEC1304, 2020-2023 Jeep Gladiator (JT) J-Krawl Ma inch Box Kit, UPC Code 711745606302
Includes one JSPEC1352, 2018-2024 Jeep Wrangler (JL) / 2020-2024 Jeep Gladiator (JT) 3.5 inch Front Coil Spr inchg Kit - HD, UPC Code 814897012370
