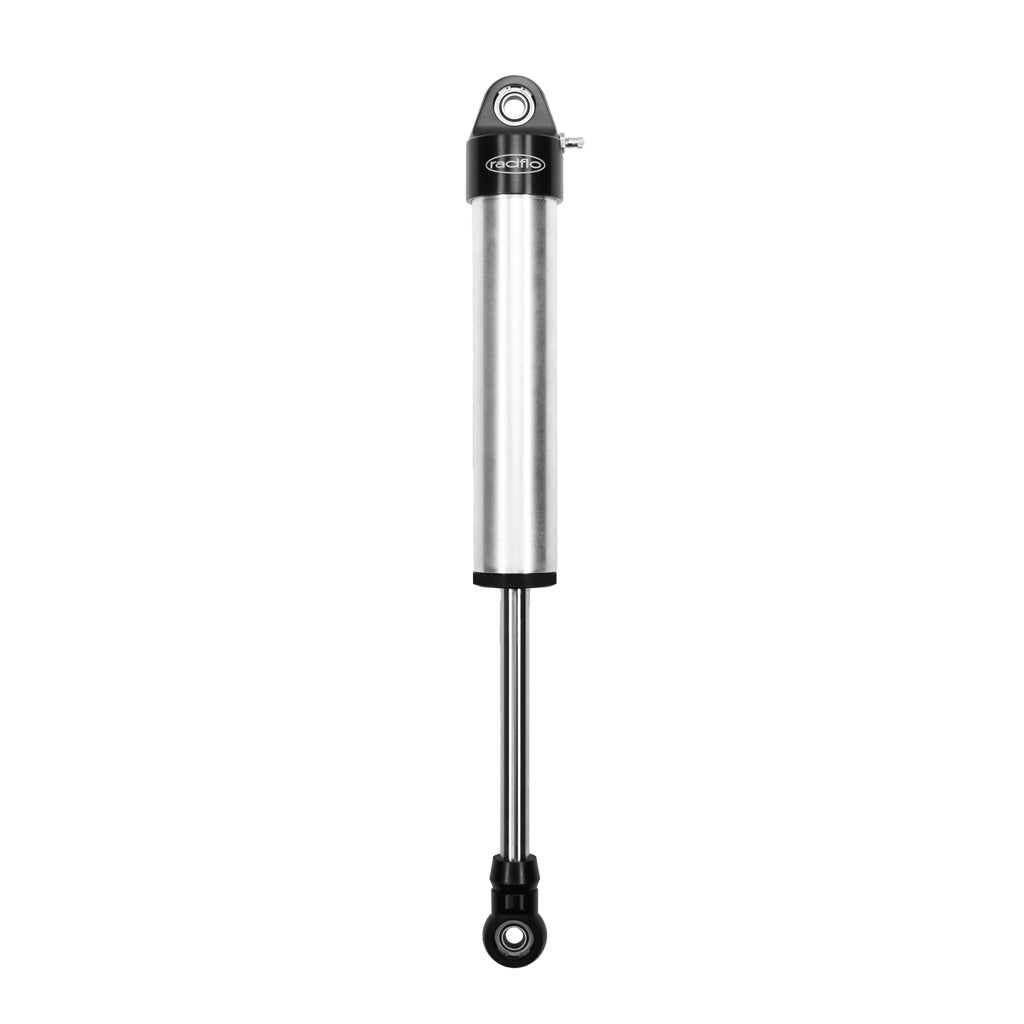

2.5 x 8 Inch Smooth Body Emulsion Radflo

This Smooth Body Shocks is built to support stable handling and a controlled ride, helping your vehicle stay composed on and off road.

If you need a stand-alone shock absorber that offers precise damping control in a customizable package, we have a wide range of configurations from which to choose. All of our shocks feature multi-stage valving that can be customized just for you.

Our talented staff of shock technicians will independently adjust rebound and compression characteristics based on your specific application and performance needs. Race ready construction and superior finish.

Our non-coil shock absorbers feature a smooth, mirror polished body manufactured from SSID steel tubing. Choose from 2.0 inch, 2.5 inch or 3.0 inch sizes based on your performance and heat dissipation requirements.

Features and Benefits:

• Built for reliable use as a smooth body shocks option
• Designed for a clean, service-friendly installation
• Helps support consistent performance over time

Details:

• Adjust Type: Self-Adjusting
• Top: Eye
• Bottom: Eye
• Travel Length: 8.0 Inch
• Bearing Size: 0.5 Inch
• Body Caps/Eyelets: CNC Machined 6061 Aluminum Black Anodized
• Body Cap Finish: Anodized
• Body Cap Material: 6061 Aluminum
• Body Material: SSID Alloy Steel
• Body Style: SSID Alloy Steel Tube
• Color: Black
• Diameter: 2.5 Inch
• Finish: Zinc Plated w/Clear Coat
• Location: Front/Rear
• Mount: Universal Spherical Bearing And Hardware
• Oil: Radflo High-Temp Foam Resistant Suspension Fluid
• Option Set: 157
• Piston: Radflo Freeflo Racing Piston
• Piston Material: Aluminum
• Pressurization: Nitrogen Gas
• PSI: 200 psi
• Reservoir Type: Emulsion
• Rod: Nitro Steel
• Rod Finish: Mirror Polished
• Rod Guide: Teflon Coating CNC Machined Bronze
• Rod Guide Finish: PTFE Coating
• Rod Guide Material: Machined Bronze
• Rod Material: Machined Bronze
• Seal: Rebuildable Combination Quad Ring And Lip Seal
• Service: Consumer or factory serviceable
• Shaft Diameter: 0.875 Inch
• Shaft Size: 7/8 Inch
• Shock Mount: Oe Location And Hardware
• Shock Type: Emulsion
• Style: Universal
• Tuning: Consumer Or Factory Tunable
• Valving: Velocity-Sensitive Deflective Disc, Self-Adjusting
• Collapsed Length: 17.56 Inch
• Extended Length: 25.55 Inch
• Series: Smooth Body Emulsion
• Shock Style: Smooth Body
• Warranty: 1 Year Limited Warranty
• Country of Origin: USA
