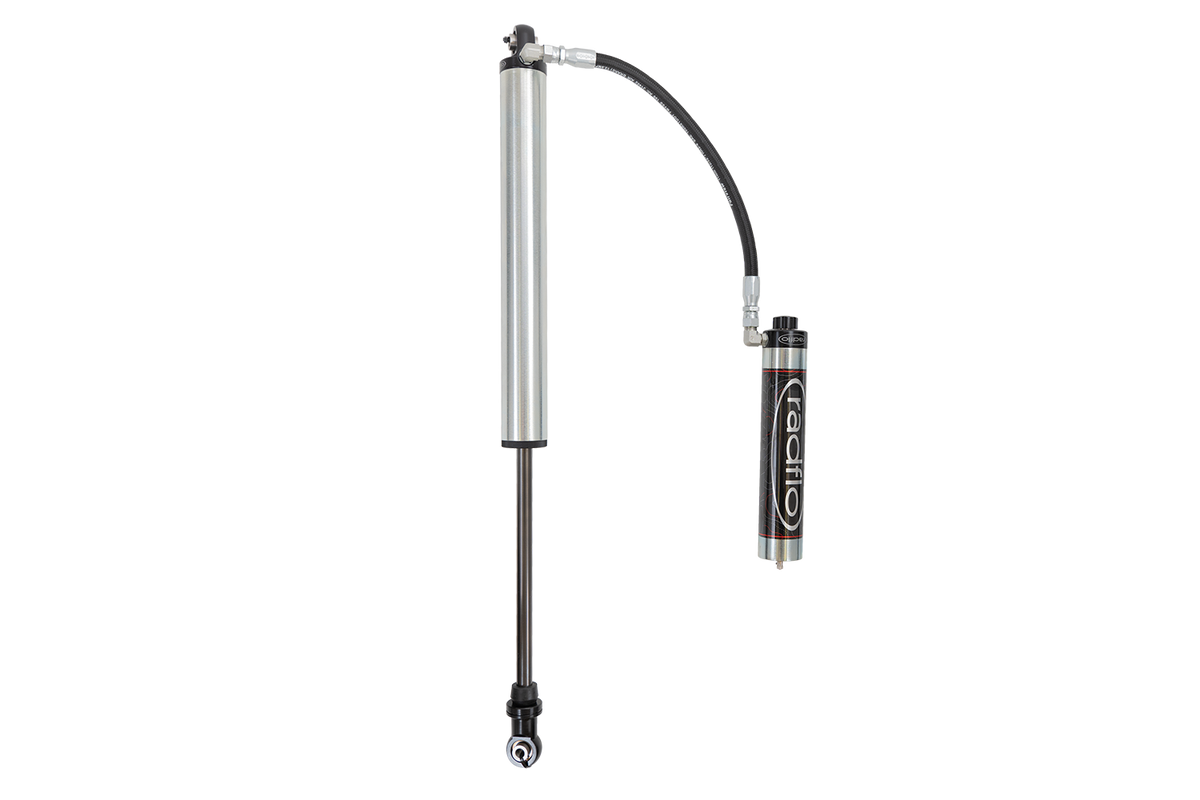

2.5 x 16 Inch Smooth Body with Adjuster Radflo

The Radflo 2.5 x 16 inch Smooth Body Shock, Compression Adjuster is a performance damper for custom suspension systems that locate the spring separately from the damper. It combines a 2.5 inch shock body with 16 inches of shock travel.

The external compression adjuster lets the user refine damping for changes in terrain, vehicle load, and driving style without opening the shock. Radflo can configure valving around the vehicle weight, suspension geometry, terrain, speed, and intended use when complete build information is supplied.

Fitment Notes:

• This product is selected by dimensions, not vehicle name alone. Confirm compressed length, extended length, upper and lower mount types, mounting widths, bolt sizes, reservoir placement, hose clearance, and chassis clearance before ordering.

Features:

• Shock body: 2.5 inch
• Travel: 16 inch
• Configuration: Smooth Body
• Damping hardware: Compression Adjuster

Details:

• Diameter: 2.5 Inch
• Shock Type: Compression Adjuster
• Shock Style: Smooth Body
• Size: 2.5 Inch
• Extended Length: 42.52 Inch
• Collapsed Length: 26.54 Inch
• Bearings: CNC Machined 6061 Aluminum Black Anodized
• Body Cap Eyelets: Anodized
• Body Cap Material: 6061 Aluminum
• Body Material: SSID Alloy Steel Tube
• Oil: Radflo High-Temp Foam Resistant Suspension Fluid
• Piston: Radflo Aluminum Freeflo Piston
• Piston Material: Aluminum
• Pressurization: Nitrogen Gas
• Rod Finish: Mirror Polished Chrome Plated
• Rod Guide: PTFE Coating CNC Machined Bronze
• Rod Guide Finish: PTFE Coating
• Rod Guide Material: Machined Bronze
• Rod Material: Machined Bronze
• Seal: Rebuildable Combination Quad Ring And Lip Seal
• Service: Consumer or Factory Serviceable
• Travel Length: 16.0 Inch
• Valving: Velocity-Sensitive Deflective Disc, Self-Adjusting
• Warranty: 1 Year Limited Warranty
• Reservoir Type: Remote Reservoir
• Style: Universal
• Top: Eye
• Tuning: Consumer Or Factory Tunable
